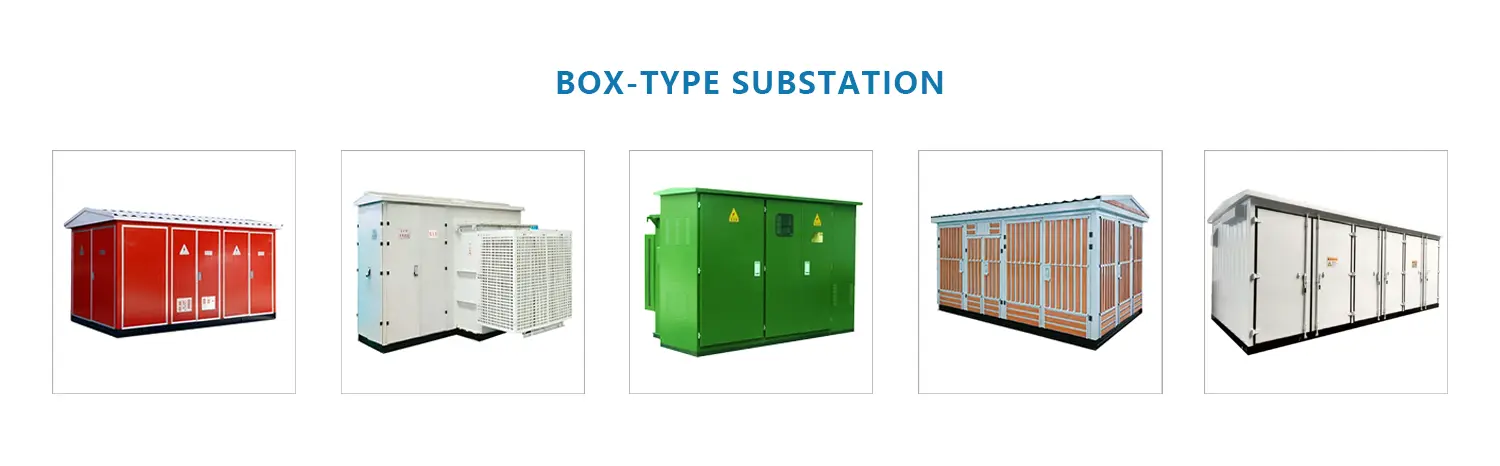

PV Compact Substation for Solar Power Plants

PV Compact Substation for Solar Power Plants

Reliable Power Solutions for Your Solar Energy Project

If you want to build a solar power plant, you need equipment that works well and won't break down over time. Our PV Compact Substation for Solar Power Plants has a transformer, switchgear, safety systems, and control tools all built into one unit that has been tried at the plant. Each system is made with the help of more than 120 sets of advanced machinery and 15 senior engineers and 30 intermediate techs. We offer 18 patents that show how innovative we are. Our substations have protection grades of IP54 to IP65, can work in temperatures ranging from -40°C to +50°C, and take 60–70% less time to install than traditional options. Because our quality management is ISO 9001-certified, there are no mistakes in the production process, from choosing the parts to delivering the finished product.

Why Choose Our Solar Power Substations?

Enterprise-Grade Design Philosophy

You should work with someone who knows how complicated solar systems can be. Our substations solve some of your biggest problems, like having to move quickly and in tight spaces, as well as having to deal with harsh weather.

We've finished a huge number of important power projects, such as the GCL Photovoltaic industry Park and other large-scale industry installations. This experience can help you find answers that work for your needs.

Technical Excellence You Can Trust

For your job, you need precise engineering. In our factory, we have CNC automatic winding machines, CNC static vacuum casting machines, and gradient curing ovens that are managed by microcomputers. Before it is shipped, every unit goes through a lot of tests.

Our quality management covers every stage:

• Raw material procurement and inspection
• Production process monitoring
• Finished product verification
• Delivery and installation support

We operate under ISO 9001, ISO 14001, and OHSAS 45001 standards. This comprehensive approach ensures you receive equipment that performs reliably for 25-30 years.

Space and Cost Efficiency

Your land and budget are valuable resources. Our integrated design eliminates separate low-voltage cabinets and reduces complex on-site wiring. You'll achieve:

• 30-40% space savings compared to conventional substations
• Reduced civil engineering costs
• Faster installation timelines (4-6 months vs. 12-18 months)
• Lower total project expenditure

The compact footprint typically measures just 15m × 8m × 4m, freeing up space for additional solar arrays.

Key Advantages for Your Solar Installation

Optimized for Photovoltaic Applications

Solar power creation comes with its own set of electricity problems. This is what our products is designed to do:

Intermittent Power Flow: Transformers can handle changing solar output throughout the day because they have a strong overload capacity.

Harmonic Management: Power quality must be kept up for grid compliance, and strong harmonic resistance saves your equipment.

Grid Integration: Disconnection places that are easy to see and don't allow islands stop dangerous back-feeding during repair, keeping utility workers safe.

Built for Extreme Environments

Your solar farm may be located in challenging conditions. We design for real-world scenarios:

• Desert Installations: Sealed enclosures with positive pressure systems and air filtration resist sandstorm damage
• Coastal Regions: Corrosion-resistant coatings withstand salt spray exposure (1000+ hours ASTM B117 testing)
• High-Altitude Sites: Enhanced cooling systems maintain performance at altitudes up to 3000 meters
• Extreme Temperatures: Operational range from -40°C to +50°C accommodates diverse climates

Our substations maintain 99.7%+ availability ratings even in harsh conditions.

Smart Monitoring and Control

Modern solar operations require real-time visibility. Each unit includes:

• SCADA integration for centralized monitoring
• IEC 61850 communication protocols
• Remote diagnostics and predictive maintenance capabilities
• Mobile-accessible performance data

These features reduce unplanned outages by 40-60% and enable proactive maintenance scheduling.

Technical Specifications

Operating Conditions

For conditions exceeding these parameters, please consult our technical team for customized solutions.

Electrical Parameters

Performance Standards

Proven Performance Across Industries

Municipal Infrastructure Projects

We've delivered reliable solutions for critical public infrastructure, including Xuzhou Rail Transit Network Control Center and Xuzhou High-speed Railway East Station. These projects demanded dual-circuit power supply designs ensuring absolute safety—standards we apply to every solar installation.

Industrial Solar Applications

Your manufacturing facility or industrial park requires uninterrupted power. We've successfully completed projects for:

• XCMG Group factory power supply upgrades
• GCL Photovoltaic Industrial Park
• Huaihai Biomedical Industrial Park
• High-Tech Industrial Park

These installations feature noise-optimized transformers (<65dB), harmonic filtering for sensitive equipment, and rapid fault isolation minimizing production disruptions.

Commercial Solar Developments

From Xinhuai Central Complex to Xuzhou Fantawild Adventure, we understand commercial requirements. Our substations integrate aesthetically with your property while delivering reliable performance.

Comprehensive Service and Support

Complete Solution Provider

Beyond manufacturing substations, we assist with:

• Additional electrical product procurement
• Customized design for your specific site conditions
• Installation guidance and commissioning support
• Spare parts availability throughout product lifespan

Quality Assurance Process

Before your PV Compact Substation for Solar Power Plants ships, it undergoes:

Electrical Performance Testing:

• Insulation resistance verification (>1000MΩ at 2.5kV)
• Power frequency withstand testing
• Impulse voltage testing (170kV lightning impulse)

Transformer Verification:

• Turns ratio testing (±0.5% tolerance)
• Dissolved gas analysis (DGA)
• Temperature rise tests under rated load

Environmental Stress Testing:

• Salt spray testing for coastal applications
• Thermal cycling (-40°C to +85°C)
• IP rating water ingress confirmation

Mechanical Integrity:

• Seismic simulation per IEEE 693
• Transportation vibration testing
• Wind loading analysis (150-200 km/h resistance)

This rigorous testing ensures your equipment arrives ready for reliable operation.

FAQ

Q: What is the expected lifespan of your compact substations?

Your effort should pay off in the long run. Our goods are guaranteed to work for 25 to 30 years if the major parts are serviced every 5 to 10 years.

Transformer oil analysis and thermography check are part of the annual upkeep. Every six months, the switchgear contact resistance is tested, and the cleanliness of the SF6 gas is confirmed.

Our remote tracking allows for planned repair, which cuts down on unplanned outages by 40–60% compared to reactive methods. This helps your solar farm make the most money and energy.

Q: How quickly can you install compared to conventional substations?

Time is money in solar development. Our compact design reduces installation from 12-18 months to just 4-6 months for equivalent capacity.

Here's why we're faster:

• Factory assembly eliminates 70% of field work
• Standardized interfaces simplify civil construction
• Minimal foundation requirements
• Plug-and-play design enables commissioning within 2-3 weeks after delivery

You'll connect to the grid sooner and start generating revenue faster.

Q: What grid compliance requirements do you meet?

Grid codes vary by region, and we ensure compliance for your specific location. Our substations meet:

• IEEE 1547 (North America)
• G59/G99 (United Kingdom)
• VDE-AR-N 4110/4120 (Germany)
• National Grid Code (India)
• Other regional standards as required

Key capabilities include:

• Voltage ride-through (±10% steady-state, +15%/-30% transient)
• Frequency response (50/60Hz ±0.5Hz operational)
• Power factor control (0.95 leading to 0.95 lagging)
• Harmonic distortion limits (<5% THD)

Factory testing validates compliance before shipment, eliminating commissioning delays.

Q: How do your substations perform in extreme weather?

The weather will affect your solar investment for a long time. We create to be resilient:

Hurricane Protection: Wind strength tested to 200+ mph makes sure that tools can withstand strong storms.

Arctic Operations: Extra heating devices keep things running smoothly at -40°C.

Flood Resistance: Critical parts with an IP67 rating can handle being submerged for a short time.

Lightning Protection: Grounding and surge arresters that work together give you 99.9%+ uptime during storm seasons.

In all situations, factory-sealed containers with built-in temperature control work better than open-air designs.

Q: Can you customize for specific project requirements?

Absolutely. Every solar project is unique, and we provide tailored solutions.

Our 15 senior engineers and advanced design capabilities address:

• Non-standard voltage requirements
• Unusual site dimensions or access constraints
• Extreme environmental conditions
• Special grid interconnection requirements
• Integration with existing infrastructure

With 18 patents and experience across diverse projects, we solve technical challenges others cannot. Conditions exceeding standard specifications require manufacturer consultation—we encourage early engagement for optimal solutions.

Q: What warranty and support do you provide?

Your peace of mind matters. We offer:

• 10-15 year warranty on transformers
• 20+ year structural warranty
• Comprehensive documentation package
• Spare parts availability throughout product lifespan
• Technical support via email and phone

Our "technology first, service paramount" philosophy means we're your long-term partner, not just an equipment supplier.

Contact Us

Ready to discuss your PV Compact Substation for Solar Power Plants solar power plant requirements? Our technical team is here to help you select the optimal substation configuration for your specific needs.

Contact us today: tuojie@electricinchina.com – Let's power your solar vision together.
