Metal Clad MV Switchgear

1.KYN-type switchgear with metal partitions.
2.Units isolated for safety.
3.Vacuum breakers on trolleys for easy maintenance.

Send Inquiry download

Product Description

Details

Metal Clad MV Switchgear: Enterprise-Grade Power Distribution Solution

When your facility demands uncompromising electrical safety and reliability, Metal Clad MV Switchgear from Xuzhou Tuojie International Trade Co., Ltd. delivers proven performance. Our KYN-type system features complete metal compartmentalization with operating voltages from 4.16kV to 38kV and short-circuit ratings up to 63kA. With a technical team of 15 senior engineers, 30+ intermediate technicians, and 18 patents, we've successfully deployed our solutions in over 120 projects including Xuzhou Rail Transit Network Control Center and XCMG Group facilities. Each unit undergoes ISO 9001-certified quality management with "zero defect" inspection protocols across 120+ advanced production equipment sets.

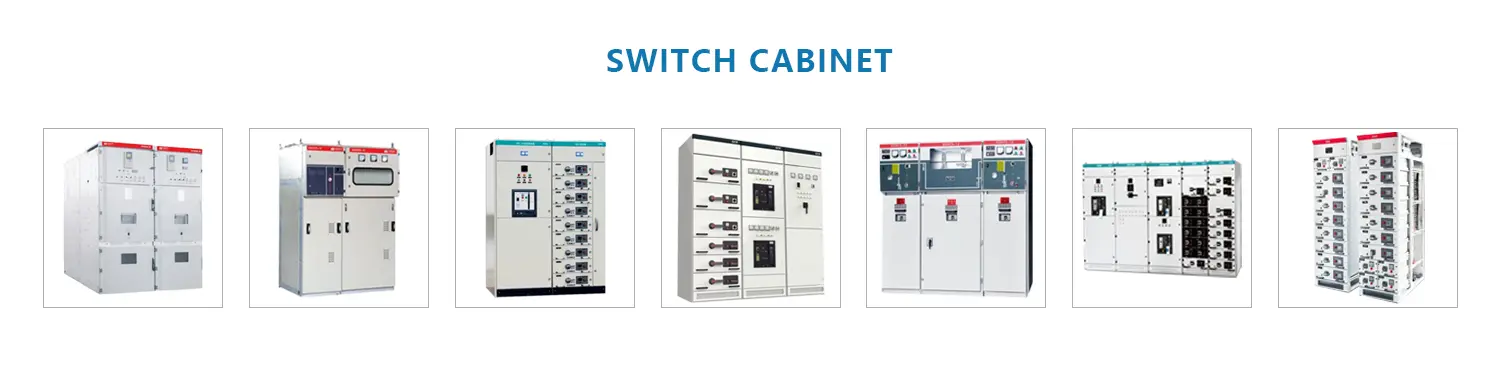

SWITCH CABINET

Understanding Metal-Clad Medium Voltage Power Distribution

Your electrical infrastructure deserves more than basic protection. This switchgear design completely encloses all live components within grounded metal compartments. You get individual isolation for circuit breakers, busbars, instrument transformers, and control equipment.

Why does this matter to you? The compartmentalization stops faults from spreading between circuits. When an arc flash occurs in one section, it stays contained. Your other circuits keep running.

How This Solves Your Distribution Challenges

You face real risks with traditional switchgear designs. Arc flash incidents threaten personnel safety. Equipment failures cascade through systems. Maintenance requires complete shutdowns.

Metal Clad MV Switchgear addresses these pain points directly:

Safety First: All live parts remain behind grounded metal barriers. Interlocking mechanisms prevent unsafe operations. You can't open compartments until the breaker disconnects.

Operational Continuity: Work on one circuit while others stay energized. The withdrawable breaker design means maintenance happens outside the cabinet. Your downtime drops significantly.

Environmental Protection: Metal enclosures provide IP54 protection as standard. Dust, moisture, and corrosive atmospheres can't compromise your electrical system. We offer IP65 ratings for harsh environments.

Technical Specifications

Parameter	Specification	Standard
Rated Voltage	4.16kV to 38kV	IEC 62271-200
Continuous Current	1200A to 4000A	IEC 62271-200
Short-Circuit Current	Up to 63kA	IEC 62271-100
Power Frequency Withstand Voltage	≥50kV	IEC 62271-200
Impulse Withstand Voltage	Up to 170kV	IEC 62271-200
Enclosure Material	Galvanized Steel (≥2mm)	-
Protection Rating	IP54 (IP65 optional)	IEC 60529
Operating Temperature	-40°C to +55°C	-
Altitude Capability	Up to 2000m	-
Circuit Breaker Type	SF6 or Vacuum	IEC 62271-100
Mechanical Life	10,000 operations	IEC 62271-100

Three Core Advantages for Your Operations

1. Superior Safety Through Five-Prevention Interlocking

You can't bypass the safety mechanisms. Our comprehensive "Five Preventions" system mechanically blocks these dangerous operations:

Opening disconnectors under load
Closing breakers on grounded circuits
Entering compartments while energized
Grounding live equipment
Removing grounding while energized

This isn't just electronic logic that fails. These are mechanical locks that physically prevent mistakes. Your team stays protected even during high-pressure switching operations.

2. Maintenance Without Major Shutdowns

Traditional switchgear forces you to de-energize entire sections. You lose production time. Revenue drops.

Our withdrawable circuit breaker units change this equation. You roll the breaker out completely. Work happens at a safe distance from live busbars. Other circuits continue normal operation.

Real results from our projects: The Tianyu Yayuan installation achieved top quality ratings partly because maintenance procedures minimized disruption. The XCMG Group factory upgrades completed ahead of schedule using this same advantage.

3. Future-Ready Intelligent Integration

Your facility will eventually need smart grid capabilities. Remote monitoring. Predictive maintenance. One-touch sequential control.

The compartmentalized design accommodates sensors and communication modules easily. You're not retrofitting problematic systems later. The foundation exists now for gradual intelligence upgrades as your budget allows.

Real-World Applications

Industrial Manufacturing Facilities

Petrochemical plants and steel mills demand reliability under harsh conditions. High fault currents. Corrosive atmospheres. Zero tolerance for extended outages.

Our switchgear handles loads from 1MVA to 50MVA in these environments. The metal-clad construction prevents contamination ingress. Fault arcs stay contained within compartments.

We've proven this in projects like the GCL Photovoltaic Industrial Park and Huaihai Biomedical Industrial Park. Both feature corrosive conditions and stringent safety requirements.

Utility Substations and Power Generation

Managing transmission and distribution networks requires handling complex switching sequences. You interface between high voltage transmission and medium voltage distribution.

The switchgear manages these transitions reliably. Advanced interlocking ensures proper sequences. Protection systems respond immediately during fault conditions.

Our Xuzhou High-speed Railway East Station project demonstrates this capability. Dual-circuit power supply designs ensure absolute safety in critical infrastructure.

Commercial and Mission-Critical Facilities

Hospitals and data centers can't tolerate power interruptions. You need seamless integration with emergency generators, UPS systems, and multiple utility feeds.

The advanced isolation capabilities enable maintenance during operation. Your backup systems test safely. Circuit transfers happen without breaking load.

The Xuzhou New Health Hospital Phase I installation exemplifies this reliability. Healthcare operations continued uninterrupted through all electrical work.

Application areas

Quality You Can Verify

We don't just claim quality. We prove it through certifications and process transparency:

International Standards Compliance:

ISO 9001 Quality Management System
ISO 14001 Environmental Management
OHSAS 45001 Occupational Health & Safety
National CCC Mandatory Certification

Certificate

Manufacturing Excellence:

Your switchgear passes through rigorous inspection at every stage. Raw material testing. In-process monitoring. Finished product verification. Pre-delivery functional testing.

Our 120+ advanced equipment sets include CNC automatic winding machines and microcomputer-controlled gradient curing furnaces. These aren't manual assembly processes prone to variation.

Testing Capabilities:

Our professional quality inspection laboratory verifies:

Insulation resistance (minimum 1000MΩ)
Primary injection current
Mechanical operation cycles
Protection relay coordination
Interlocking system functionality

FAQ

Q1: What maintenance intervals should I expect and what's involved?

Your maintenance schedule depends on breaker technology. SF6 switchgear typically requires attention every 3-5 years. Vacuum breakers extend this to 5-7 years, following IEC 62271-100 recommendations.

Maintenance includes contact wear measurement, SF6 gas purity analysis (maintaining >97% purity), mechanical operation testing, and insulation resistance verification. The withdrawable design makes these procedures straightforward.

Q2: How do SF6 and vacuum circuit breakers compare for my application?

SF6 breakers excel in higher voltage applications above 15kV. They handle interrupting capability up to 63kA reliably. You'll see them in utility substations and heavy industrial settings.

Vacuum breakers dominate medium voltage applications below 15kV. They offer maintenance-free operation for 20+ years with environmental advantages. No gas monitoring. No emissions concerns.

Your selection depends on voltage level, fault current magnitude, and environmental considerations per IEC 62271-100 standards. We'll help you determine the optimal choice.

Q3: Do I need arc flash studies for my installation?

NFPA 70E requires arc flash studies when incident energy may exceed 1.2 cal/cm². Studies involve fault current calculations, protective device coordination analysis, and arc flash boundary determination.

Results directly impact your PPE requirements and switching procedures. The metal-clad design typically reduces incident energy through superior arc containment compared to open-air or metal-enclosed designs.

Q4: How do you verify performance after installation?

Post-installation verification follows IEC 62271-200 protocols:

Insulation resistance testing (minimum 1000MΩ)
Primary injection testing to verify protection settings
Mechanical operation testing of all switching devices
Functional testing of interlocking systems

Acceptance criteria align with factory test reports and your design specifications. You receive complete documentation for your records.

Q5: What environmental factors most affect reliability?

Critical factors include ambient temperature (optimal operation below 40°C), humidity levels (requiring heaters below 95% RH), altitude (derating above 2000m), and atmospheric contamination.

The metal-clad construction with IP54/IP65 ratings protects against most environmental challenges. We customize solutions for extreme conditions based on your specific site requirements.

Q6: Can your switchgear integrate with existing protection systems?

Yes. We provide flexible relay configurations compatible with existing SCADA systems, protection relays, and communication protocols. The modular design accommodates various control schemes without compromising the core safety features.

Why Choose Xuzhou Tuojie International Trade?

You need more than equipment. You need a partner who understands power distribution challenges.

Our 20+ years of industry experience span municipal, commercial, and industrial projects. We've handled everything from rail transit control centers to pharmaceutical manufacturing facilities.

Technical Capability: 15 senior engineers, 30+ intermediate technicians, and 17 senior technicians provide the expertise your project deserves. Our 18 patents demonstrate continuous innovation.

Comprehensive Service: We assist with additional product procurement, providing one-stop solutions for your entire electrical infrastructure.

Customer-First Philosophy: "Technology first, service paramount, and integrity fundamental" guides every decision. We prioritize your interests with tailored solutions meeting your unique industry and regional requirements.

Proven Track Record: Hundreds of successfully completed projects include high-profile installations like Xuzhou Rail Transit, XCMG Group facilities, and Xuzhou Fantawild Adventure.

PATENT CERTIFICATE

Contact Us

Ready to discuss your Metal Clad MV Switchgear medium voltage distribution requirements? Reach out to our technical team at tuojie@electricinchina.com for customized solutions and project consultation.

SHARE TO

Intentional inquiry

Online Message

Research team
