Prefabricated substation

1.Modular substations use full-station prefabrication integrating transformers, switchgear, compensation, automation, power, and environmental systems.
2.All equipment is factory-preassembled, tested, and shipped in modules for onsite connection and commissioning.
3.Provides complete turnkey solution: design, procurement, installation, system integration, commissioning, and handover.
4.Achieves modular functionality, standardized construction, and intelligent systems in a single project.

Send Inquiry download

Product Description

Details

Prefabricated Substation: Fast-Deploying Power Distribution Solution

With combined transformers, switchgear, and control systems in a single weatherproof casing, our prefabricated substation provides factory-assembled greatness. We make flexible units that cut the time it takes to install from 6 to 12 months to just 2 to 4 weeks. We have 18 patents and over 120 sets of modern manufacturing equipment. Each unit is up 99.97% of the time thanks to 15 top engineers and strict ISO 9001 quality management. Our full-station prefabrication includes environmental systems, automation, and compensation equipment. All of these parts are checked in the plant before they are shipped.

What Is a Prefabricated Substation?

It's an entire power transfer system that was built in a workshop under strict controls.

You get control systems, safety tools, and transformers all put together in one standard enclosure.

This plan cuts down on the time needed for building on-site.

Consistent quality and faster energization are good for your project.

Putting together a traditional transformer takes months, and delays can happen because of bad weather.

Our answer comes ready to be quickly set up and connected.

You don't have to deal with the quality problems that come with building in the field.

The small size makes it work in tight urban areas where regular substations won't.

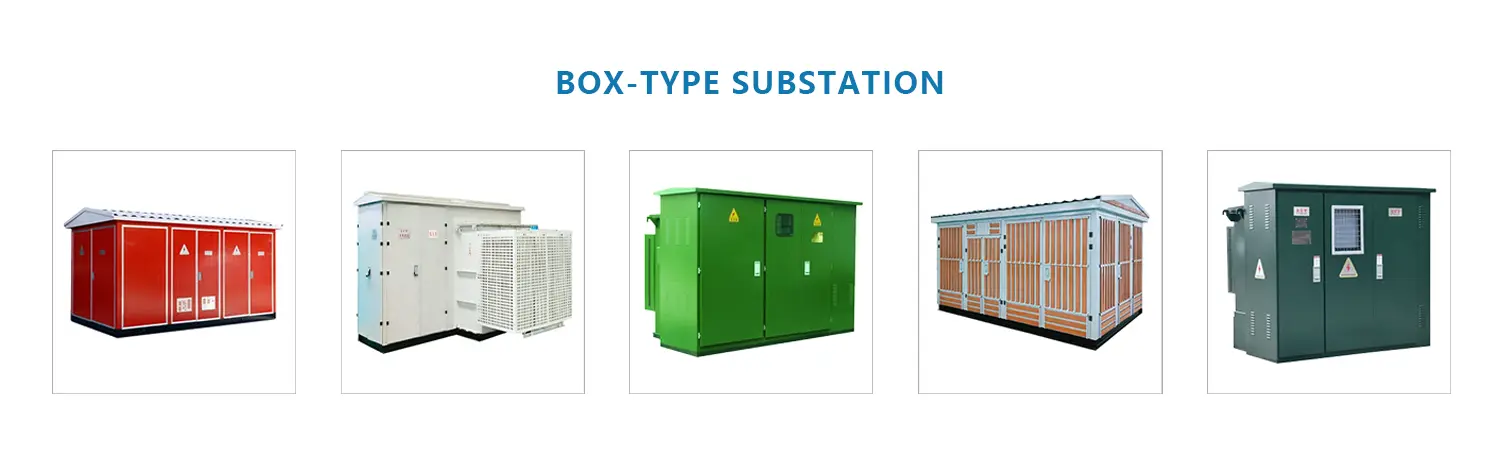

BOX-TYPE SUBSTATION

Complete Turnkey Solution From Design to Handover

We handle everything so you don't have to coordinate multiple vendors.

Our Process Includes:

Custom engineering design matching your specifications
Complete equipment procurement from certified suppliers
Factory pre-assembly and comprehensive testing
System integration with your existing infrastructure
On-site installation and connection
Full commissioning and performance validation
Documentation and operator training

Your involvement stays minimal while we ensure every component works perfectly together.

Our team of 30+ intermediate technicians conducts rigorous testing before shipment.

You receive a plug-and-play solution that starts operating within days of delivery.

This approach reduces your project timeline by 70% compared to conventional methods.

Technical Parameters

Specification	Value
Voltage Rating	10kV to 35kV
Capacity Range	100kVA to 2500kVA
Temperature Range	-40°C to +50°C (standard) / -55°C to +60°C (specialized)
Ingress Protection	IP54 to IP68 (depending on configuration)
Seismic Rating	Up to 0.5g horizontal acceleration
Wind Load Resistance	Up to 200 mph
Noise Level	≤65 dB at 1 meter
Expected Lifespan	25-30 years
Installation Time	1-3 days after site preparation
Manufacturing Lead Time	12-16 weeks

Key Advantages That Solve Your Challenges

Speed of Deployment

You need power infrastructure fast, and we deliver.

Our modular units complete installation in 2-4 weeks versus 6-12 months for traditional builds.

Factory assembly means no weather delays or coordination issues.

Your operations start generating revenue months earlier.

Space Efficiency

Urban projects face severe space constraints.

Our compact design reduces footprint by 40-60% compared to conventional substations.

You can install units in locations where traditional equipment simply won't fit.

This makes them perfect for rooftop installations and congested industrial sites.

Cost Reduction

Total project costs drop 15-25% when you factor in all expenses.

Lower labor costs, reduced site work, and faster completion translate to real savings.

Your ROI typically occurs within 3-5 years through decreased maintenance expenses.

Energy consumption drops by 12-18% thanks to optimized thermal management.

Superior Quality Control

Every connection, weld, and component undergoes testing in our controlled facility.

Our zero-defects philosophy ensures problems get caught before shipment, not after installation.

You receive equipment that meets strict ISO 9001 and IEC standards.

Field assembly introduces variables—factory production eliminates them.

Enhanced Reliability

Our units achieve 99.97% uptime through redundant protection systems.

CNC automatic winding machines and microcomputer-controlled curing furnaces ensure precision manufacturing.

You get consistent performance across all environmental conditions.

Modular substations trending toward miniaturization increase reliability further.

Wide-Ranging Applications Across Industries

Industrial Operations

Manufacturing plants, chemical facilities, and mining sites depend on our solutions.

You get reliable power in harsh environments with extreme temperatures and corrosive atmospheres.

Our units withstand Class I, Division 2 hazardous locations.

Projects like XCMG Group factory upgrades and GCL Photovoltaic Industrial Park demonstrate proven performance.

Utility Distribution

Electric utilities choose our equipment for grid modernization and emergency restoration.

Fast deployment capabilities mean you restore service quickly after disasters.

Smart grid integration includes automated switching and remote monitoring.

Standardized designs reduce your maintenance complexity significantly.

Commercial Real Estate

Shopping centers, hospitals, and data centers require space-efficient distribution.

Our designs offer seismic resilience for earthquake-prone areas.

Flood-resistant configurations with elevated mounting protect critical infrastructure.

Projects like Xinhuai Central Complex and Xuzhou Fantawild Adventure showcase commercial versatility.

Municipal Infrastructure

Rail transit, hospitals, and transportation hubs need absolute safety.

We've delivered dual-circuit power supply designs for Xuzhou Rail Transit Network Control Center.

Our substations powered Xuzhou High-speed Railway East Station and Xuzhou New Health Hospital Phase I.

You get proven reliability in mission-critical applications.

Application areas

Proven Track Record in Major Projects

Our Prefabricated substation experience spans hundreds of key power projects across diverse sectors.

Municipal Engineering:

Xuzhou Rail Transit Network Control Center with dual-circuit safety systems
Xuzhou High-speed Railway East Station power infrastructure
Xuzhou New Health Hospital Phase I complete electrical solution

Commercial Real Estate:

Xinhuai Central Complex multi-phase implementation
Huaihai Xintiandi Phases 7-8 commercial development
Tianyu Yayuan project achieving top quality assessment results

Industrial Projects:

XCMG Group factory power supply upgrades completed ahead of schedule
GCL Photovoltaic Industrial Park comprehensive distribution
Huaihai Biomedical Industrial Park specialized requirements

These projects demonstrate our capability to deliver on time while maintaining exceptional quality.

Quality Certifications You Can Trust

All our products carry internationally recognized certifications:

ISO 9001 Quality Management System
ISO 14001 Environmental Management System
OHSAS 45001 Occupational Health and Safety
National CCC Mandatory Certification for all low-voltage equipment

Our professional quality inspection laboratory validates every unit.

Comprehensive quality management covers every stage from raw material procurement to final installation.

You receive products that meet country-specific requirements and environmental standards.

Certificate

FAQ

Q: What is the typical lifespan and maintenance schedule?

You can expect 25-30 years of operation with proper care.

Annual inspections include oil testing, thermal imaging, and protection system verification.

Major maintenance occurs every 5-7 years for transformer servicing and switchgear overhaul.

We follow IEEE C57.91 loading guides and IEC 60422 oil condition standards.

Q: How do these units perform in extreme weather?

Standard models operate from -40°C to +50°C without issues.

Specialized designs handle arctic conditions down to -55°C and tropical heat up to +60°C.

Seismic ratings reach 0.5g horizontal acceleration for earthquake zones.

Wind load resistance extends to 200 mph for hurricane-prone areas.

Our designs comply with IEEE 693 seismic qualification testing requirements.

Q: What are lead times and installation requirements?

Standard units require 12-16 weeks manufacturing time.

Installation completes in 1-3 days after you prepare the foundation.

Foundation requirements are minimal—typically just concrete pads.

Commissioning follows IEEE C2 National Electrical Safety Code procedures.

You're operational in weeks instead of months.

Q: How do costs compare to conventional substations?

Total project costs run 15-25% lower than traditional construction.

You save on installation time, labor expenses, and site preparation.

ROI analysis shows payback within 3-5 years through reduced maintenance.

Higher reliability means fewer costly downtime incidents.

Q: What expansion capabilities exist for future growth?

Modular designs accommodate 25-50% capacity increases.

You can add parallel transformers or extend switchgear bays.

SCADA integration provisions support smart grid compatibility.

Designs follow IEEE 2030 standards for future-proof infrastructure.

Why Choose Our Company?

Technical Excellence

Our team includes 15 senior engineers and over 30 intermediate technicians.

We hold 18 patents demonstrating innovation leadership.

Continuous investment in R&D keeps us at the industry forefront.

PATENT CERTIFICATE

Advanced Manufacturing

We operate over 120 sets of cutting-edge production equipment.

CNC automatic winding machines ensure precision.

Microcomputer-controlled gradient curing furnaces optimize performance.

Automatic foil winding machines deliver consistency.

Comprehensive Service

We assist with additional product procurement for your convenience.

Our philosophy: technology first, service paramount, integrity fundamental.

You get tailored solutions meeting your unique requirements.

We provide complete transformer solutions beyond just equipment supply.

20+ Years of Experience

Two decades serving customers worldwide builds deep expertise.

We understand diverse environmental conditions and regional standards.

Our proven project execution delivers results on time and on budget.

CUSTOMER CASE

Contact Us

Ready to accelerate your Prefabricated substation power infrastructure project? Email us at tuojie@electricinchina.com for customized solutions that meet your specific requirements.

SHARE TO

Intentional inquiry

Online Message

Research team
