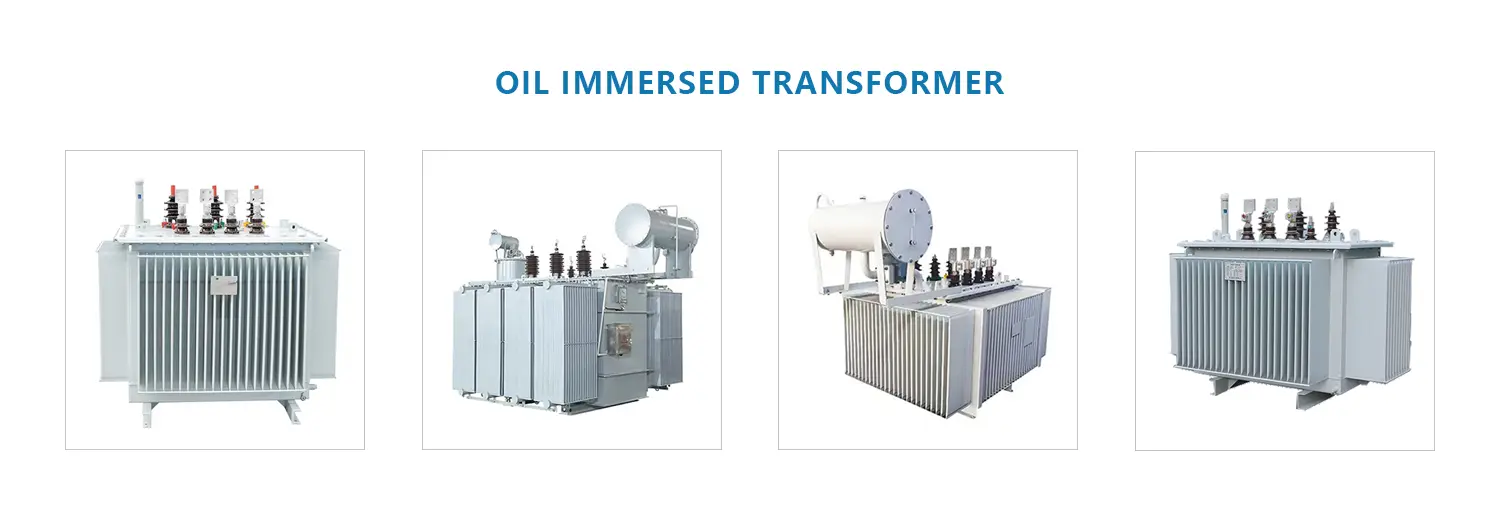

S9 Oil Immersed Power Transformer for Industrial Use

S9 Oil Immersed Power Transformer for Industrial Use

Reliable Power Distribution for Demanding Industrial Environments

When your industrial building needs a power source that doesn't go out, the S9 Oil Immersed Power Transformer for Industrial Use is reliable enough for large businesses. With capacities ranging from 30KVA to 31500KVA, our transformers are used in chemical plants, mining activities, and factories. We make transformers that are rated at 98.5% efficiency. Our original design is backed by 18 patents, and we have a technical team of 15 top engineers and over 120 sets of advanced production equipment. Each unit goes through a strict quality check that follows ISO9001 guidelines. This makes sure that your important processes never have to stop working without warning. As proof of our skills, we finished installations on time and successfully at the GCL Photovoltaic Industrial Park and XCMG Group plant upgrades.

What Makes This Transformer Essential for Your Operations?

You have to deal with problems every day to keep the power stable in tough industrial settings. Changes in voltage can stop your production lines from working. Overheating equipment risks the continuation of operations. Power quality is harmed by harmonic distortion caused by varying frequency drives.

Our transformer fixes these problems with its advanced electric design. The mineral oil does two things: it acts as a better insulator and cools down important parts. This system keeps working at its best even when your building has a lot of electricity loads.

The tools you have stays safe. Your work keeps going as usual. Your costs for upkeep go down a lot.

The tight design keeps dust, wetness, and particles that are common in industrial settings from getting inside. This safety makes the transformers last longer than usual, which gives you a better return on your investment.

Technical Specifications

Where Your Transformer Performs Best?

Steel Manufacturing Facilities

Your electric arc burners and rolling mills use a lot of electricity. Heavy harmonic distortion and voltage changes don't affect the S9 Oil Immersed Power Transformer for Industrial Use's performance. Dust, high temperatures, and radio radiation don't change how reliable something is. Your steel output keeps going well.

Chemical Processing Plants

Continuous operation is needed for reactors, distilling units, and chemical processes. You cannot afford for the power to go out. Our oil-immersed design works great in areas that are prone to corrosion and explosions. The improved insulation and tight design give you peace of mind in tough situations.

Mining Operations

There are special problems that come up with underground substations and processing plants on the surface. Normal transformers are put under a lot of stress by mechanical movements, big changes in temperature, and high humidity. Power that you can depend on is needed for your breakers, conveyor systems, and extraction tools. Coal dust, mineral particles, and water can't get in because the building is sealed. When mine equipment breaks down, it costs a lot of money and puts people in danger. Our transformers get rid of this risk.

Core Advantages You'll Appreciate

Energy Efficiency Reduces Operating Costs

Internal design reduces power loss. No-load losses usually run 0.1-0.3%, while efficiency exceeds 98.5%. Lower energy usage means reduced operational costs month after month.

Overload Capacity When You Need It

Peak demand situations don't compromise security. Your transformer keeps performance during temporary overload situations, protecting your investment during critical production times.

Superior Thermal Management

The clever oil ventilation system keeps temperatures optimal. Enhanced cooling with radiators or forced air movement ensures winding temperature increases stay within safe limits. This thermal control extends device life greatly.

Proven Durability

Robust sealed casing design gives 25-30 years operating life with proper upkeep. Strong overload capacity and weather-resistant design fit outdoor applications and harsh settings. You're making a long-term investment in security.

Lower Total Cost of Ownership

Initial investment and operating costs stay lower than options. Predictive maintenance and problem analysis tools that are well-developed make it less likely that unexpected breakdowns will happen. Your repair staff can plan to fix things before they go wrong.

Flexible Configuration Options

You can choose from 30KVA to 31500KVA, so it can fit any project size. We can meet your unique needs because we offer a range of voltage setups, vector groups, and cooling methods. We offer custom options whether you're building new sites or improving the ones you already have.

Quality You Can Verify

We use full quality control at every stage of the production process. Getting raw materials, inspecting new goods, production processes, testing produced goods, storing them, and delivering them all follow strict rules. Products that aren't up to par never leave our plant.

Critical Testing Protocols

Your transformer goes through a lot of testing before it is shipped. Testing for dielectric strength shows that transformer oil has a breaking voltage higher than 30kV. By carefully keeping an eye on the amounts of hydrogen, acetylene, and carbon monoxide, dissolved gas analysis can find possible problems.

Power factor testing makes sure that at rated power, insulation quality values stay below 0.5%. Temperature rise tests show that the thermal efficiency is good when the load is full. Impulse voltage tests make lightning hits and switching surges look real, making sure that your transformer meets the Basic Impulse Level standards.

Ratio checking, vector group confirmation, and partial discharge tests below 100pC levels are all things we do. With every unit, you get written proof that the transformer is working properly.

Our quality testing lab uses high-tech tools to make sure that it meets foreign standards. There are standards for the product from IEC60076 to ANSI to IEEE to GB to CSA. Our ISO9001, ISO14001, and OHSAS45001 badges show that we are dedicated to quality, being good to the earth, and meeting health and safety standards at work.

FAQ

Q: What is the expected lifespan in industrial applications?

With proper maintenance including regular oil analysis and thermal monitoring, you can expect 25-30 years operational life. This lifespan is validated through accelerated aging tests per IEEE C57.91 standards.

Q: How frequently should transformer oil be tested?

Conduct oil analysis annually for critical applications. Dissolved gas analysis every 6 months enables early fault detection. Oil replacement intervals typically range 10-15 years depending on operating conditions and DGA results indicating degradation.

Q: Can this transformer handle voltage fluctuations common in industrial systems?

Absolutely. Our transformers feature robust voltage regulation within ±2.5% and withstand voltage variations up to ±10% continuously. Short-circuit withstand capability is validated through impedance and thermal tests, ensuring your equipment stays protected during electrical disturbances.

Q: What maintenance procedures ensure optimal performance?

Essential maintenance includes monthly visual inspections and quarterly oil level checks. Annual thermographic surveys identify potential hot spots before problems develop. Biannual electrical testing includes insulation resistance and power factor measurements per IEEE C57.106 maintenance guidelines. Your maintenance team can easily integrate these procedures into existing schedules.

Q: How does the transformer perform in harsh environmental conditions?

The oil-immersed design provides IP54 protection rating. It operates reliably in -40°C to +40°C ambient temperatures and withstands humidity up to 95%. Sealed tank construction prevents moisture ingress and contamination, confirmed through environmental stress testing meeting IEC 60076-11 standards. Whether you're operating in desert heat, arctic cold, or tropical humidity, your transformer continues performing.

Q: What cooling options are available for different applications?

You can select from ONAN (Oil Natural Air Natural), ONAF (Oil Natural Air Forced), AN, or AF cooling methods. ONAN suits standard applications, while ONAF provides enhanced cooling for higher capacity installations or challenging thermal environments. We help you select the optimal cooling configuration for your specific conditions.

Our Commitment to Your Success

Every inverter we make is based on our more than 20 years of experience in the field. Our mindset is based on three main ideas: technology first, service first, and honesty first. We put your needs first by investing in research and development all the time and coming up with useful new ideas.

Every job gets a lot of help from our technical team, which is made up of 15 senior engineers, over 30 intermediate technicians, and 17 senior technicians. Xuzhou Rail Transit Network Control Centre, XCMG Group plant upgrades, and GCL Photovoltaic Industrial Park are just a few of the important power projects we've finished successfully.

Besides transformers, we can also help you get other electrical goods you need, giving you full options. This one-stop method makes the buying process easier and makes sure that all of the parts work together.

Contact Us

Contact our technical team today to discuss your specific requirements. We'll help you select the optimal S9 Oil Immersed Power Transformer for Industrial Use configuration for your facility. Email us at tuojie@electricinchina.com for detailed specifications and quotations.
