10kV-35kV SCB18 Cast Resin Transformer

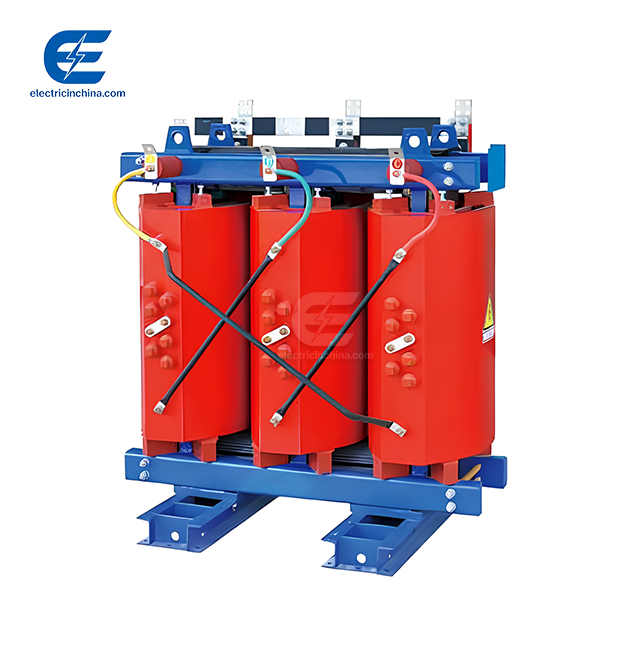

10kV-35kV SCB18 Cast Resin Transformer: Advanced Dry-Type Power Distribution Solution

Overview

The 10kV-35kV SCB18 Cast Resin Transformer delivers enterprise-grade performance with proven reliability. Our transformer has a capacity range of 30 to 2500 KVA and is made with 18 unique technologies and more than 120 sets of modern production equipment. It automatically checks the temperature, is more than 98% efficient, and doesn't need any upkeep for more than 25 years. This three-phase dry-type unit meets IEC60076 standards because it can handle 150% of its rated load and has better resistance to wetness at 100% humidity. Our quality system is ISO9001-certified, which means that there are no mistakes in any part of the making process.

What Makes Our Cast Resin Transformers Stand Out?

Smart and Reliable Performance

Your building needs a power source that doesn't go out. Intelligent temperature tracking systems built into our transformers keep track of weather conditions in real time. Automatic changes will keep things running at their best without you having to keep an eye on them all the time.

The resin-encapsulated design fully gets rid of fire risks. You don't have to worry about fire hazards when installing the unit right at your load centre, whether it's in a basement, on a roof, or close to a living area.

Built to Last in Harsh Environments

Working near the coast or in industrial zones? The frame made of clay and resin is very resistant to rust. Even when there is 100% humidity, our transformers still work perfectly. After shutting down, you can start up again right away without having to dry out first.

Extreme temperatures won't stop what you're doing. You can trust the units to work reliably from -40°C to +40°C and at heights of up to 4000 meters. Because they can change, they are great for a wide range of climates.

Energy Efficiency That Reduces Your Costs

Every business wants to lower energy expenses. The optimized magnetic circuit design in our product minimizes system losses. You'll notice reduced electricity consumption compared to older transformer generations.

The low-loss engineering supports your sustainability goals. With no-load losses reduced by 10-15% compared to previous models, you contribute to environmental protection while improving your bottom line.

Technical Specifications

Key Advantages for Your Business

Superior Safety Features

Fire safety is important in your building. Because the generator is non-flammable and doesn't pollute, it can be put near important loads without the need for extra fire control systems. You'll save money and floor room this way.

Exceptional Operational Flexibility

Need to deal with different loads? Your transformer can easily work at 150% of its rated capacity when it is cooled by forced air. This extra feature acts as a cushion during times of high demand so that equipment doesn't get damaged.

Minimal Maintenance Requirements

Tired of having to wait for planned breaks to test the oil and check the insulation? Using cast plastic technology doesn't need much upkeep. You get rid of the costs of checking the oil, installing filters, and doing normal maintenance. The easy installation method also lowers the cost of the job at the start.

Quiet Operation

Does noise pollution bother your stakeholders? At a distance of one meter, these transformers make less than 45dB of noise, making them good for places like hospitals, hotels, and apartment buildings that need to keep noise down. People who live in your building won't even notice the tools working.

High Efficiency Under All Conditions

The improved design of the conductors and the grain-oriented silicon steel core make the product very efficient. At full load, you keep speed above 98%. Low partial discharge levels (below 10pC) make sure that the insulation stays in good shape over time.

Where You Can Use These Transformers?

Commercial and Residential Buildings

Shopping centers, hospitals, and high-rise apartments benefit from compact dimensions and flame-retardant properties. You meet strict building codes while maximizing usable space.

Industrial Facilities

Manufacturing plants, petrochemical complexes, and mining operations face challenging conditions. The 10kV-35kV SCB18 Cast Resin Transformer withstands corrosive atmospheres, temperature extremes, and contamination without performance degradation.

Renewable Energy Projects

Wind farms and solar substations require equipment that handles variable loading and frequent switching. Our transformers excel in these demanding applications, supporting your clean energy initiatives.

Remote and Offshore Installations

Limited access locations appreciate maintenance-free operation. Marine platforms and remote substations eliminate oil leakage risks while benefiting from superior vibration resistance.

Data Centers and Critical Infrastructure

Uninterrupted power supply is non-negotiable for your IT operations. The reliable performance and intelligent monitoring features protect your valuable equipment and data.

Why Choose Our Manufacturing Excellence?

Proven Technical Expertise

Our 15 senior engineers, 30+ intermediate technicians, and 17 senior technicians have worked together for decades and know what they're doing. Their knowledge helps you make better products and get better help with applications.

Advanced Production Capabilities

We keep the standard high with CNC automatic winding machines, static vacuum casting equipment, and microcomputer-controlled gradient curing ovens. Each item is made with great care and attention to detail.

Rigorous Quality Control

We check the raw materials, keep an eye on the production process, and test the finished goods before they are sent out. Our "zero defects" policy means that the tools you get meets all of your needs perfectly. Every part of the business is controlled by the ISO9001 quality management system.

Comprehensive Service Approach

Do you need more electricity items? We help with more than just buying transformers. You can get all of your power distribution needs met by a single source, which makes managing your supply chain easier.

Proven Project Track Record

We've finished a huge number of projects for businesses, cities, and factories. Our transformers work reliably in tough situations, like the Xuzhou Rail Transit Network Control Centre and the upgrades at the XCMG Group factories. In the real world, these structures show that we can meet your needs.

FAQ

Q1: How long will this transformer last in my facility?

You can expect 30+ years of service life. The epoxy resin insulation maintains its properties without the degradation issues that affect oil-paper systems. Unlike oil-filled units requiring eventual replacement due to insulation breakdown, cast resin technology provides stable long-term performance.

Q2: What happens if moisture gets into the transformer?

Your transformer continues operating normally. The cast resin absorbs less than 0.1% water even with 24-hour immersion. The closed-cell structure prevents moisture penetration while maintaining dielectric strength above 35kV/mm even in 95% humidity environments. Standard IP23 enclosures provide adequate protection for most applications.

Q3: Can the transformer handle temporary overloads?

Yes, you can safely run at 150% rated load for 2 hours or 200% for 30 minutes. The superior thermal conductivity of resin compounds and open-ventilated design enable direct heat dissipation. Thermal class H insulation (180°C) provides additional safety margins beyond conventional designs.

Q4: How does shipping and installation compare to oil-filled transformers?

You'll reduce total project costs by 15-25%. The lightweight construction (40% lighter than oil-filled equivalents) simplifies foundations. You eliminate oil handling equipment and fire protection requirements. Faster installation without oil processing saves time. The modular design enables standard truck transportation for higher ratings.

Q5: What maintenance schedule should we follow?

Your maintenance burden practically disappears. You only need periodic visual inspections and occasional cleaning of ventilation openings. There's no oil testing, no filter replacement, no moisture control systems to maintain. This dramatically reduces lifecycle costs compared to oil-filled alternatives.

Q6: Will this transformer work at high altitude locations?

Absolutely. The design accommodates installations up to 4000 meters altitude. The dry-type insulation system doesn't face the pressure equalization challenges that affect oil-filled transformers at elevation.

Q7: How do I verify quality before accepting delivery?

We conduct comprehensive testing including winding resistance measurement, voltage ratio verification, insulation resistance testing, and partial discharge measurements. You receive complete test reports documenting compliance with IEC 60076 standards. Temperature rise testing, impulse voltage testing, and sound level measurements confirm performance specifications.

Contact Us

Ready to upgrade your power distribution system? Our technical team will design the optimal 10kV-35kV SCB18 Cast Resin Transformer configuration for your specific requirements. Contact us at tuojie@electricinchina.com to discuss your project.
