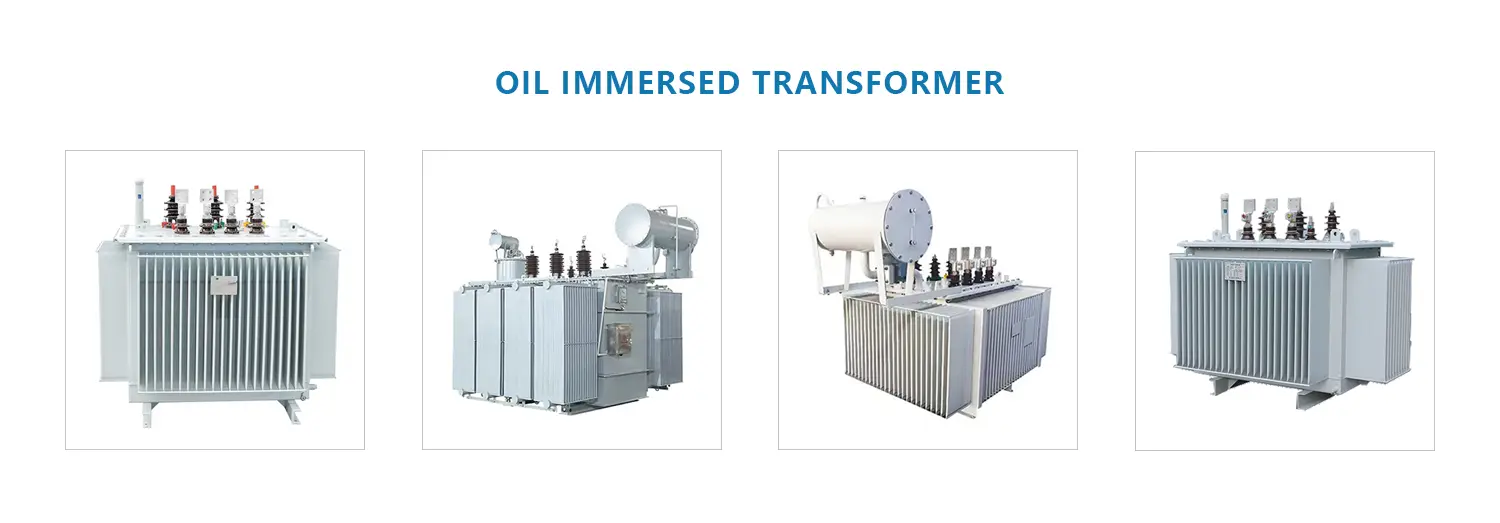

Oil Immersed Transformer for Power Distribution

Reliable Power Solutions for Your Critical Infrastructure

When your operations demand uninterrupted power supply, our oil immersed transformer for power distribution delivers enterprise-grade performance you can trust. Manufactured by Xuzhou Tuojie International Trade Co., Ltd., these transformers feature advanced S13-S22 series low-loss copper windings with efficiencies reaching 99.5-99.8%. With capacity options from 30KVA to 31,500KVA and primary voltages up to 35kV, our units handle extreme conditions from -40°C to +40°C. Backed by 18 patents, ISO 9001 certification, and a team of 15 senior engineers, we've successfully powered over 100 municipal and industrial projects. Our strict quality management ensures zero-defect production across 120+ advanced manufacturing systems.

Why Choose Our Transformers for Your Power Distribution Needs?

Proven Durability in Harsh Environments

You need equipment that works when it matters most. Our transformers excel where others fail. The sealed tank design protects against dust, moisture, and wildlife interference. Whether you're operating in desert heat or arctic cold, these units maintain stable performance.

The insulating oil provides superior cooling compared to air-based systems. This thermal advantage translates to real benefits for your operations. You get 150% overload capacity during peak demand periods. That's peace of mind when production schedules can't wait.

Lower Total Cost of Ownership

Budget constraints shouldn't compromise quality. Our solution delivers value at every stage:

Initial Investment: Competitive pricing without sacrificing reliability

Operating Costs: 99.5%+ efficiency reduces energy waste

Maintenance: Predictive diagnostics minimize unexpected downtime

Lifespan: 30-40 years of service with proper care

You'll appreciate the grain-oriented silicon steel core. It reduces no-load losses significantly. Over two decades of operation, these savings add up substantially.

Advanced Manufacturing Excellence

Behind every transformer stands our production capability. We operate over 120 sets of precision equipment. CNC automatic winding machines ensure consistent coil quality. Microcomputer-controlled curing furnaces optimize insulation properties.

Our 15 senior engineers and 30+ intermediate technicians bring expertise to every design challenge. They've developed solutions for projects like Xuzhou Rail Transit and XCMG Group factories. That experience informs the product you receive.

Quality checkpoints exist at every production stage:

• Raw material verification
• In-process monitoring
• Finished product testing
• Pre-delivery inspection

Nothing leaves our facility without meeting strict standards. It's how we've maintained customer satisfaction across hundreds of installations.

Technical Specifications

Key Advantages That Impact Your Bottom Line

Superior Thermal Management

The oil immersed transformer for power distribution uses insulating oil as both coolant and insulation. This dual function creates exceptional heat dissipation. You avoid the thermal limitations of dry-type alternatives.

Temperature rise stays within 65K for windings per IEC 60076 standards. Consistent cooling protects your investment. It prevents accelerated aging that shortens equipment life.

Robust Overload Capability

Production spikes happen. Your power infrastructure must adapt. Our transformers handle temporary overloads without damage. The oil's thermal mass absorbs heat surges that would cripple air-cooled units.

This flexibility proves invaluable in industrial settings. Manufacturing facilities face variable loads daily. Mining operations demand reliability during critical extraction phases. Data centers can't tolerate power quality issues.

Proven Project Performance

Our track record speaks to reliability:

Municipal Projects: Xuzhou Rail Transit Control Center utilizes dual-circuit designs for absolute safety. High-speed Railway East Station depends on our transformers for continuous operation.

Commercial Installations: Xuzhou Fantawild Adventure and multiple residential complexes trust our solutions. The Tianyu Yayuan project achieved top quality ratings using our equipment.

Industrial Applications: XCMG Group's factory upgrades and GCL Photovoltaic Industrial Park were completed ahead of schedule. Quality standards exceeded expectations throughout.

Comprehensive Support Services

You're not just buying equipment. You're gaining a partner committed to your success. We assist with product procurement beyond transformers. Need cables or switchgear? We coordinate complete solutions.

Our technical team provides consultation from specification to commissioning. They understand local grid requirements and environmental challenges. That knowledge ensures proper sizing and configuration.

Applications Across Industries

Industrial Substations

Heavy manufacturing demands robust power delivery. Our 10-50MVA units serve facilities with variable loads. They handle the stress of frequent motor starts and welding operations.

Mining sites particularly benefit from sealed tank construction. Dust and vibration don't compromise performance. Temperature swings of ±30°C daily pose no problems.

Municipal Distribution Networks

Urban areas need compact, quiet solutions. Our transformers produce less than 50dB noise at rated load. This makes them suitable for installation near residential zones.

Hospitals and commercial districts require 99.9% uptime reliability. Our equipment delivers that assurance. Load tap changers provide voltage regulation as demand fluctuates.

Rural Electrification

Remote locations present unique challenges. Limited maintenance access demands dependable equipment. Our sealed designs resist moisture ingress and wildlife contact.

Agricultural regions benefit from units rated for extreme weather. The robust construction ensures continuous operation. Farmers and rural businesses get the power quality they deserve.

Renewable Energy Integration

Wind farms and solar installations create variable grid conditions. Our specialized units manage these power quality challenges. Advanced monitoring systems track performance in real-time.

Remote deployment locations mean maintenance crews can't respond quickly. Predictive diagnostics identify issues before they cause outages. You maximize energy capture from renewable sources.

Quality Assurance You Can Verify

Rigorous Testing Protocols

Every transformer undergoes comprehensive factory acceptance testing. Impulse voltage withstand tests verify insulation integrity. Short circuit capability testing confirms structural strength.

We measure no-load and load losses to guarantee efficiency ratings. Transformer turns ratio testing maintains ±0.5% tolerance. These aren't arbitrary standards—they're commitments to performance.

Oil Quality Management

Fresh insulating oil meets strict specifications. Dielectric strength exceeds 30kV per IEC 60156 standards. Moisture content stays below 10ppm through careful processing.

We perform dissolved gas analysis before shipment. This baseline data helps you monitor condition during operation. Breakdown voltage testing ensures reliable electrical insulation.

Certifications That Matter

ISO 9001 certification validates our quality management system. ISO 14001 demonstrates environmental responsibility. OHSAS 45001 confirms workplace safety standards.

Products meet GB1094-1996 and GB/T6451-2008 national standards. IEC 60076 international compliance ensures global compatibility. You receive documentation supporting all certifications.

FAQ

Q: How often should I test the insulating oil?

You should perform annual dissolved gas analysis for units above 10MVA. Smaller transformers need testing every two years. Emergency testing becomes necessary after fault events or when loads exceed 130% for more than 24 hours. Following IEEE C57.106 maintenance guidelines protects your investment.

Q: What's the difference between sealed and conservator tank systems?

Sealed systems eliminate moisture ingress and oil oxidation. They work well in moderate climates. Conservator designs offer better cooling through oil expansion chambers. They require nitrogen blanketing and silica gel maintenance every 2-3 years. Your environmental conditions determine the best choice.

Q: How does temperature affect overload capacity?

Each 10°C ambient temperature increase reduces overload capability by approximately 12-15%. You'll need derating calculations per IEEE C57.91 standards. This prevents insulation damage and maintains the expected 20-year thermal life. Our technical team helps with these assessments.

Q: What monitoring systems detect faults early?

Online dissolved gas monitors track hydrogen and acetylene trends. Fiber optic thermal sensors identify hot spots before damage occurs. Partial discharge detection systems provide 95% fault prediction accuracy. Combining automated monitoring with quarterly oil testing gives comprehensive protection.

Q: How long do these transformers typically last?

With proper maintenance, expect 30-40 years of reliable service. Service life depends on loading patterns and environmental conditions. Regular oil testing and timely repairs extend operational lifespan. Our installed base includes units operating successfully for decades.

Q: Can you customize voltage and capacity specifications?

Absolutely. We design transformers matching your exact requirements. Primary voltages from 10kV to 35kV are standard. Secondary voltages range from 0.22kV to 1.14kV. Capacities span 30KVA to 31,500KVA. Tell us your needs—we'll engineer the solution.

Contact Us

Partner with Xuzhou Tuojie International Trade Co., Ltd. for transformer solutions Oil immersed transformer for power distribution backed by 20+ years of expertise. Contact us at tuojie@electricinchina.com for customized specifications.
