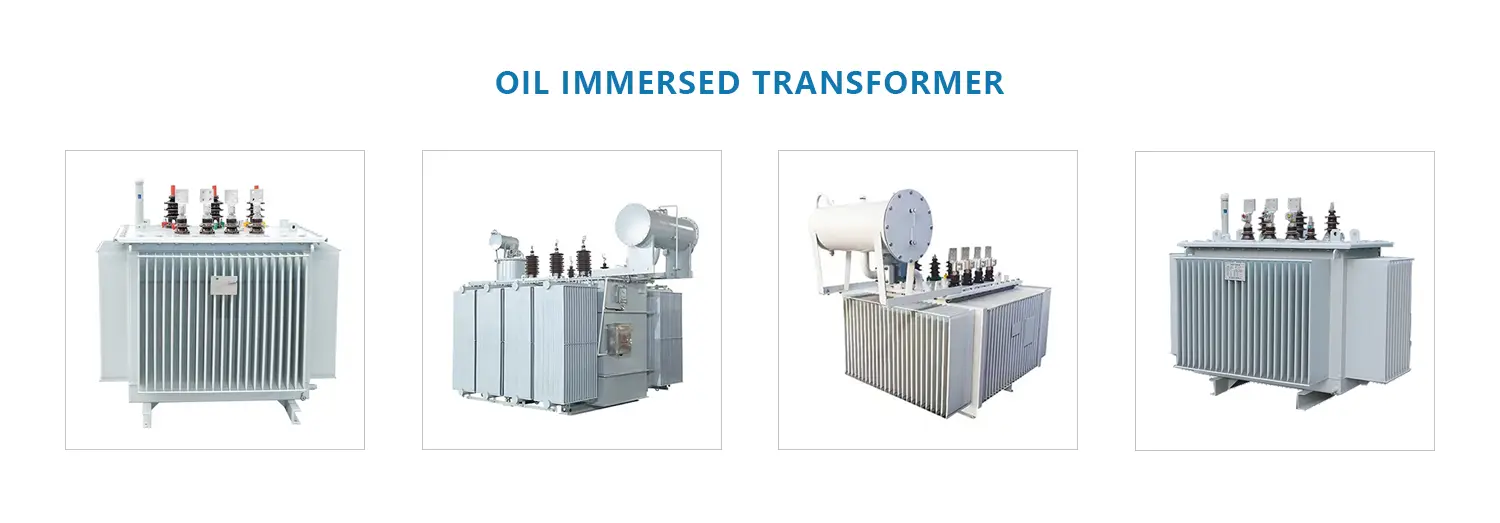

High Efficiency Oil Immersed Transformer

Power Your Operations with Advanced Energy Solutions

Our High efficiency oil immersed transformer is a great example of how cutting edge tech can be reliable. When compared to regular units, these transformers save 40 to 60% more energy because they are 98.5 to 99.7% efficient. We provide transformer solutions that meet the strict needs of power lines, urban infrastructure, and industrial facilities. Our team of 15 senior engineers, 30+ intermediate workers, and 18 patents in transformer innovation backs us up. The energy loss in our S13–S22 series transformers is less than 1.5% thanks to their improved grain-oriented silicon steel cores and better protective oil systems.

What Makes Our Oil Immersed Transformers Different?

Advanced Engineering for Maximum Efficiency

The tools you use should work as hard as you do. The high-grade grain-oriented electrical steel (GOES) cores in our transformers keep eddy current losses to a minimum. The best mineral or synthetic ester oils help heat escape while keeping the engine at the right temperature.

Here's what makes our answer different:

• Less no-load loss: usually 0.8 to 1.2% compared to 2% to 3% in normal units
• Better thermal control has made tools last longer—35 years or more.
• Lower carbon footprint: 15–25% less money spent on energy for operations
• Better heat management: stays stable when load conditions change

Comprehensive Technical Specifications

Our transformers deliver performance you can count on across multiple parameters:

Where Your High Efficiency Oil Immersed Transformer Excels?

Industrial Manufacturing Applications

Heavy manufacturing facilities demand 24/7 reliability. Our transformers power steel mills, chemical plants, and data centers where downtime costs thousands per minute. They maintain efficiency ratings above 98.5% even in challenging conditions.

Your facility faces unique challenges:

• Ambient temperatures from -40°C to +50°C
• High humidity conditions up to 95% RH
• Altitude variations up to 3000m

Our transformers handle these conditions while delivering consistent performance.

Renewable Energy Integration

Wind farms and solar installations face variable load conditions. Our transformers excel at managing rapid load fluctuations while maintaining voltage stability within ±1% tolerance. This makes them ideal for grid-tied renewable energy applications where regulation capabilities matter.

Urban Infrastructure Projects

Space comes at a premium in urban environments. Our compact designs fit tight spaces while meeting strict noise limitations. Subway systems, hospitals, and commercial complexes benefit from:

• Reduced maintenance intervals (5-year vs 2-3 years)
• Noise levels below 45dB
• Enhanced safety features including pressure relief systems
• Remote monitoring capabilities for predictive maintenance

Key Advantages That Impact Your Bottom Line

1. Lower Total Cost of Ownership

You save money from day one. Initial investment costs run lower than alternatives. Operating costs drop by 15-25% compared to conventional transformers. For a 10MVA transformer at 80% load factor, you'll save $15,000-25,000 annually at $0.10/kWh electricity rates.

2. Built for the Long Haul

Durability matters when you're planning decades ahead. Our transformers offer:

• Strong overload capacity up to 140% for emergency operations
• 35+ year service life
• Proven performance in harsh outdoor environments
• Weather-resistant construction for demanding climates

3. Predictable Maintenance Schedule

Forget about service delays happening all the time. Maintenance can be done every 24 to 36 months or every 5 to 7 years. Through predictive maintenance, our condition tracking tools cut down on unexpected downtime by 85%.

As required by ASTM D3612, your generator should be tested for DGA every year and have its oil analyzed every three years. Instead of every few years, full checks happen every 10 years.

4. Ultra-High Capacity Capabilities

Our transformers can handle more power as you need it. We offer capacities ranging from 30KVA to 31,500KVA and voltages up to 35kV. This gives you the freedom to grow without having to buy new tools.

5. Enhanced Safety and Environmental Performance

New eco-friendly insulating fluids improve High efficiency oil immersed transformer safety while reducing environmental impact. Our biodegradable ester fluids feature:

• Dielectric strength >70kV
• Moisture content <10ppm
• Acid numbers <0.01mgKOH/g
• Extended oil life of 25-30 years

Our Quality Commitment to You

Quality isn't an afterthought. It's built into every stage of production.

Manufacturing Excellence

We operate over 120 sets of advanced machinery including:

• CNC automatic winding machines
• CNC static vacuum casting machines
• Automatic foil winding machines
• Microcomputer-controlled gradient curing furnaces

Our modern equipment ensures consistent quality and optimized efficiency.

Rigorous Testing Protocols

Every transformer undergoes comprehensive inspection before reaching you:

Electrical Tests (per IEC 60076-1):

• Turns ratio verification (±0.5% tolerance)
• Insulation resistance measurement (>1000MΩ)
• Power loss assessment confirming efficiency targets

Dielectric Testing:

• Lightning impulse withstand tests (BIL ratings up to 2050kV)
• Power frequency withstand tests
• Partial discharge measurements (<10pC at 1.1Un)

Oil Analysis:

• Dielectric breakdown voltage (>70kV)
• Water content verification (<10ppm)
• Acidity level testing (<0.01mgKOH/g)
• Dissolved gas analysis (DGA) for fault detection

Thermal Performance:

• Heat run tests at 100% and 120% rated load
• Temperature rise confirmation within 65K limits
• Cooling system effectiveness verification

Zero Defects Philosophy

We integrate the "zero defects" concept into every detail. Our quality management follows ISO9001 standards with strict monitoring from raw material procurement through installation. Unqualified products never leave our factory.

Proven Track Record Across Industries

Many important power projects have been finished by us over the past 20 years:

The Xuzhou Rail Transit Network Control Centre and the Xuzhou High-speed Railway East Station are powered by our transformers. Dual-circuit power source designs make sure that vital train transit systems are completely safe.

In the field of commercial real estate, we've provided services for big projects like the Xinhuai Central Complex and the Xuzhou Fantawild Adventure, always getting excellent evaluations.

Industrial Projects: Our transformers are used in the upgrades to the XCMG Group factories, the GCL Photovoltaic Industrial Park, and a number of other high-tech industrial parks. Projects are finished ahead of time and to the highest standards of quality.

FAQ

Q: How does efficiency directly impact my operational costs?

Your product achieves 98.5-99.7% efficiency ratings. This reduces energy losses by 40-60% compared to conventional units.

For real numbers, a 10MVA generator that works at 80% load factor saves between $15,000 and $25,000 a year in energy costs ($0.10/kWh). That saves $375,000 to $625,000 in energy costs over 25 years.

Following IEC 60076-1 loading tests and IEEE C57.12.90 measurement methods for efficiency testing gives you written proof of performance.

Q: What maintenance should I expect?

Maintenance intervals extend significantly. You'll schedule major maintenance every 5-7 years instead of every 24-36 months with standard transformers.

Your maintenance schedule includes:

• Annual DGA testing for early fault detection
• 3-year oil analysis per ASTM D3612
• 10-year comprehensive inspections

Our condition monitoring systems provide predictive maintenance capabilities. This reduces unplanned downtime by 85%. You'll know about potential issues before they become problems.

Q: Can these transformers handle extreme climates?

Advanced cooling systems maintain optimal operation from -40°C to +50°C ambient temperatures. Altitude compensation works up to 3000m elevation.

ONAN (Oil Natural Air Natural) systems handle base loads efficiently. ONAF (Oil Natural Air Forced) configurations manage up to 140% overload capacity when you need extra power during peak demand.

Thermal testing per IEC 60076-2 confirms 65K temperature rise limits under maximum load conditions. Your transformer stays cool even when working hardest.

Q: When should I replace the insulating oil?

Oil quality assessment follows IEC 60422 standards. Monitor these key indicators:

Normal Operating Ranges:

• Dielectric strength: >70kV
• Moisture content: <15ppm (optimal <10ppm)
• Acidity levels: <0.05mgKOH/g

Replacement Indicators:

• Dielectric breakdown <30kV
• Moisture >25ppm
• Acid number >0.1mgKOH/g

Modern ester fluids in our transformers extend oil life to 25-30 years versus 15-20 years for mineral oils. This means fewer oil changes and lower lifetime maintenance costs.

Q: What warranty and performance guarantees do you provide?

We stand behind our transformers with comprehensive 5-year warranty coverage and 25-year design life guarantees.

Performance guarantees include:

• Efficiency levels within ±0.1%
• Noise limits per IEC 60076-10
• Temperature rise within specified limits
• Load capacity as rated

You receive detailed documentation of factory acceptance tests (FAT) with witnessed testing and complete performance verification.

Q: How do I verify quality before shipment?

Every transformer undergoes factory acceptance testing before leaving our facility. You're welcome to witness testing or send representatives.

Testing includes:

• Complete electrical parameter verification
• Dielectric strength testing
• Thermal performance validation
• Mechanical integrity assessment
• Short-circuit withstand tests

We provide comprehensive documentation including test reports, quality certificates, and operation manuals. This ensures you receive exactly what you ordered with verified performance specifications.

Why Choose Xuzhou Tuojie International Trade Co., Ltd.?

Technical Innovation You Can Trust

Our 18 patents are real new ideas that will make your transformer work better. In order to solve problems in the business, we keep putting money into research and development.

Comprehensive Service Approach

It's not just transformers that we sell. We offer full power supply options that are made to fit your needs. Do you need help with other electrical items? In order to make things easier, we help with buying.

Global Standards Compliance

We make sure that all of our goods meet foreign standards like IEC60076, ANSI, IEEE, and GB. We have ISO9001, ISO14001, and OHSAS45001 certificates.

National CCC Mandatory Certification is given to low-voltage equipment and wire goods. This makes sure that it works with the tools you already have and follows the rules in your area.

Customer-First Philosophy

"Technology first, service paramount, and integrity fundamental" guides everything we do. We prioritize your interests through:

• Customized solutions for unique requirements
• Responsive technical support
• Transparent communication
• On-time delivery commitments

Contact Us

Ready to reduce High efficiency oil immersed transformer energy costs and improve reliability? Reach out to discuss your specific requirements.
