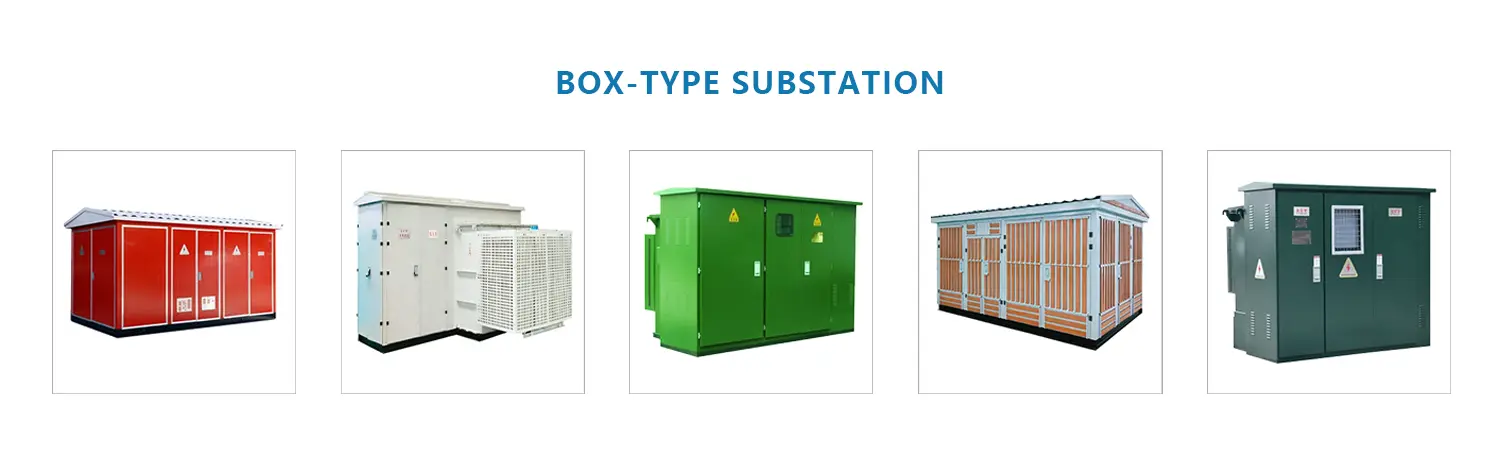

Photovoltaic Compact Transformer Substation

Photovoltaic Compact Transformer Substation: Integrated Power Solution for Solar Farms

At every step of the planning process for a solar power system, economy is important. Our Photovoltaic Compact Transformer Substation has a design that saves room while still providing enterprise-level performance. This fully integrated unit has modern safety systems, step-up transformers, and HV/LV switchgear all in one tested box. Compared to traditional substations, your installation size will be 40% smaller, and the efficiency rate will be over 98.5%. Our system has an IP54 grade for security, an average construction time of three days, and an availability rate of 99.7%. It can handle power ratings from 315kVA to 40MVA and voltage changes from 0.4kV to 35kV. This product changes the way you connect solar panels to the grid. It is backed by 18 patents and made with more than 120 sets of CNC precise equipment.

What Is a Photovoltaic Compact Transformer Substation?

Think of it as your solar farm's power hub.

This integrated electrical answer is a small tool that does a lot of different things. Power transformation, switching, security, and control are all included, and they have all been tried and are ready to use.

The system raises the power from your inverters, which is usually 0.4kV, to a middle level (10kV to 35kV). This lets the transfer to the grid work well.

What does this have to do with your project?

Traditional substations need to be put together on-site in a lot of detail. There needs to be different buildings, complicated plumbing, and a long commissioning process. These problems are gone thanks to our small design.

The time it takes to set will be cut by 60 80%. The work on the electricity takes less time for your team. You make the best use of the land that you have for solar panels.

Maintenance is easier because of the flexible design. Reliability is built in from the start with factory integration.

Technical Specifications

Here's what you can expect from our Photovoltaic Compact Transformer Substation:

Core Advantages That Matter to Your Project

Designed for Solar Power Characteristics

Your PV output fluctuates. Weather changes. Cloud cover varies.

Our transformer design accounts for this reality. You get robust overload capacity. The system handles harmonic resistance effectively. This protects your investment during power surges and variable generation.

High Integration Saves Money

Traditional setups require separate low-voltage cabinets. Extensive on-site wiring adds cost and complexity.

We've eliminated these requirements. You reduce your station footprint significantly. Civil engineering costs drop. Installation expenses decrease. Your project budget stretches further.

Built for Harsh Environments

Solar farms operate in challenging locations. Deserts. Coastal areas. High-altitude regions.

Our IP54 protection rating handles these conditions. The enclosure withstands UV exposure, sand, salt spray, and temperature extremes. Corrosion protection meets ISO 12944 standards for C3-C5 environments.

Safety-First Protection Features

Grid maintenance requires absolute safety.

Our anti-islanding protection prevents dangerous back-feeding. The integrated high-voltage load switch provides a clearly visible disconnection point. Your maintenance personnel work with confidence. You meet IEEE 1547 standards for grid interconnection.

Where You'll Use These Systems?

Utility-Scale Solar Installations

Large projects demand reliable performance. From 10MW to 500MW+ capacity, our substations serve as collection points for multiple inverter strings.

You operate in extreme conditions. Surface temperatures reaching +60°C. Frequent sandstorms. High UV exposure.

Our systems deliver 99.7% availability. Integrated SCADA monitors over 1,000 data points in real-time. Specialized filtration prevents sand ingress while maintaining protection ratings.

Commercial and Industrial Applications

Your rooftop installation faces unique constraints. Space is limited. Noise matters in urban settings.

We've addressed these challenges. Noise levels stay below 45dB. The compact design fits tight spaces. Step-up transformation handles 480V to utility voltage seamlessly.

Advanced power quality management protects sensitive electronic loads. Reactive power compensation and harmonic mitigation keep your facility running smoothly.

Distributed Generation Projects

Community solar and remote electrification require different considerations. Maintenance access is limited. Specialist technicians aren't always available.

Our systems incorporate battery integration capabilities. Islanding detection and reconnection protocols meet IEEE 1547.1 requirements. Remote diagnostics reduce on-site service needs by 70%.

Simplified maintenance schedules work for non-specialist operators. Enhanced cybersecurity protects isolated installations.

Our Manufacturing Excellence

You need confidence in your equipment supplier.

We bring 20+ years of industry experience. Our technical team includes 15 senior engineers, over 30 intermediate technicians, and 17 senior technicians.

Advanced production equipment ensures quality. We operate 120+ sets of machinery:

• CNC automatic winding machines
• CNC static vacuum casting machines
• Automatic foil winding machines
• Microcomputer-controlled gradient curing furnaces

Quality management follows ISO 9001 standards. We inspect at every stage—from raw material procurement through installation. Our "zero defects" philosophy means unqualified products never leave the factory.

Certifications include ISO 9001, ISO 14001, and OHSAS 45001. All products hold National CCC Mandatory Certification.

Proven Project Track Record

We've delivered hundreds of key power projects:

Municipal Engineering: Xuzhou Rail Transit Network Control Center and High-speed Railway East Station feature dual-circuit power supply for absolute safety.

Commercial Real Estate: Projects like Xinhuai Central Complex and Xuzhou Fantawild Adventure demonstrate our commercial expertise.

Industrial Applications: XCMG Group factory upgrades and GCL Photovoltaic Industrial Park showcase our solar industry experience. Projects completed ahead of schedule while maintaining high quality.

FAQ

Q: How long will the substation last?

You can expect 25+ years of operation with proper maintenance. Design life testing follows IEC 60076-7 standards. Mean Time Between Failures (MTBF) reaches 15-20 years for major components. Mean Time To Repair (MTTR) stays under 4 hours for 95% of issues through modular design.

Q: What about extreme weather performance?

Wind resistance is rated for 180+ mph sustained winds per ASCE 7 standards. Cold weather performance works down to -40°C through specialized transformer oil and integrated heating. Salt spray resistance testing per ASTM B117 ensures 25-year coastal performance.

Q: How do you handle harmonic issues from inverters?

Integrated filtering reduces total harmonic distortion below 3%. K-factor rated transformers (K-13 or higher) handle inverter-generated harmonics. Active power quality conditioning provides real-time compensation. We verify IEEE 519 compliance through factory testing.

Q: Is the monitoring system secure?

Multi-layered security architecture includes encrypted communications per IEC 62351. Role-based access control uses two-factor authentication. Network segmentation isolates operational technology. We conduct regular penetration testing and comply with NERC CIP cybersecurity standards.

Q: What maintenance is required?

Quarterly visual inspections check for physical damage and verify indicator readings. Annual thermographic scanning detects hot spots early. Three-year oil analysis monitors transformer health. Five-year protection relay testing ensures continued accuracy. Remote diagnostics identify 80% of issues before field visits.

Q: Can you customize for special environments?

Absolutely. We've engineered solutions for desert installations with enhanced cooling and sand filtration. Coastal projects receive upgraded corrosion protection. High-altitude configurations account for reduced air density. Seismic zones get reinforced foundations per IEEE 693 standards.

Q: How does installation work?

Foundation preparation takes 1-2 days. We deliver the pre-tested unit on a single transport. Placement and connection typically complete in 3-5 days. Factory integration eliminates lengthy on-site commissioning. You're operational faster with fewer complications.

Contact Us

Ready to discuss your Photovoltaic Compact Transformer Substation solar project? Reach out to our technical team at tuojie@electricinchina.com for customized solutions and detailed specifications.
