Energy Saving Amorphous Core Transformer

Energy Saving Amorphous Core Transformer

Advanced Power Distribution Solution with Superior Efficiency

Our Energy Saving Amorphous Core Transformer works very well and is good enough for businesses. This transformer has 70–80% less no-load losses than regular types because it uses modern amorphous metal alloy technology to make it. With rated capacities between 30KVA and 31,500KVA and efficiency rates between 98.5 and 99.2%, this technology has been tested and is backed by 18 patents. It is also made with over 120 sets of modern production equipment. Our technical team of 15 senior engineers and 30 or more junior workers uses strict ISO9001-certified methods to make sure that every unit meets the highest quality standards.

What Makes Amorphous Core Technology Different?

Understanding the Innovation

An amorphous metal core isn't like traditional silicon steel. The atomic structure is non-crystalline, which sounds technical—but here's what matters to you: it wastes far less energy.

Traditional transformers lose 2-3% of transmitted power as heat. That's money disappearing 24/7, even when your facility isn't operating at full capacity.

Our amorphous technology changes this equation. You get:

• Core loss density as low as 0.1-0.3 W/kg versus 1.0-1.5 W/kg in conventional units
• Continuous savings because no-load losses drop by approximately 70%
• Lower carbon footprint through reduced energy waste
• Compliance with increasingly strict global efficiency standards

The amorphous ribbon core—just 25-30 micrometers thick—delivers magnetic permeability ranging from 50,000-100,000 μ. This superior magnetic performance translates directly into cost savings you'll see every billing cycle.

Technical Specifications

Key Advantages That Impact Your Bottom Line

1. Dramatically Lower No-Load Losses

Your transformer operates around the clock. Even during off-peak hours, conventional units consume energy. Our Energy Saving Amorphous Core Transformer reduces this waste by 70-80%. Over a typical 20-year lifespan, that translates to substantial operational savings.

2. Oil-Free, Safer Operation

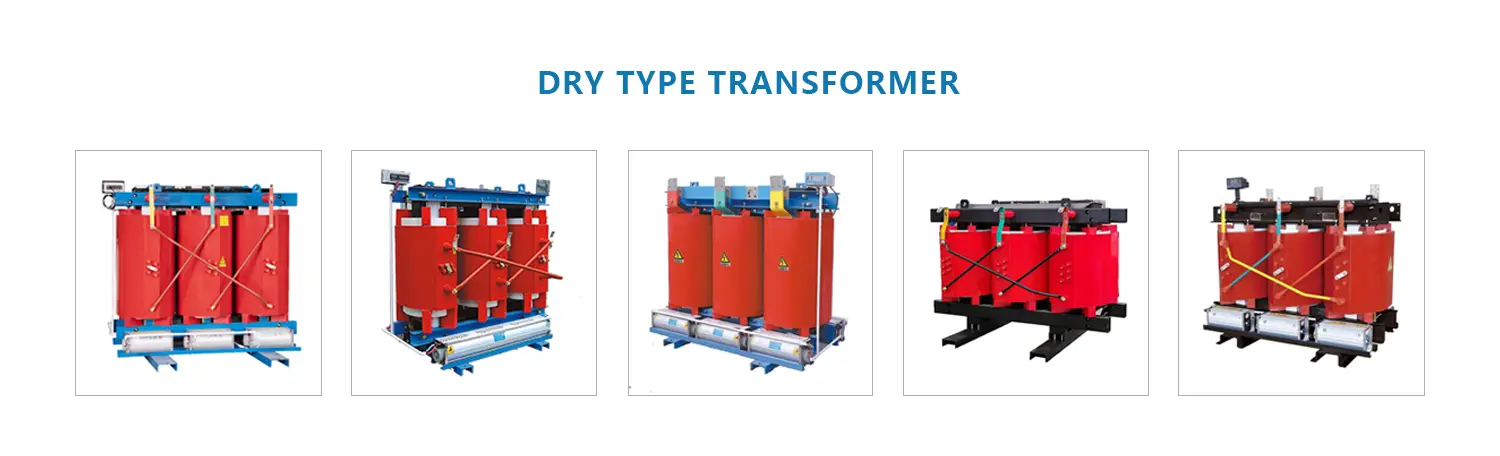

Fire safety matters, especially in high-risk locations. This dry-type design eliminates oil-related hazards while providing:

• Flame-retardant and self-extinguishing properties
• Reduced environmental risk
• Simpler installation requirements

3. Built for Harsh Environments

Whether you're dealing with coastal humidity, industrial dust, or temperature extremes, these transformers perform reliably:

• Operating range: -40°C to +180°C
• Moisture-resistant construction
• Crack-resistant under thermal stress
• Minimal performance degradation across conditions

4. Virtually Maintenance-Free

Lower operating temperatures mean less thermal stress on components. You'll spend less time and money on upkeep. Our quality management system—with rigorous inspection at every production stage—ensures you receive equipment that simply works.

5. Quieter Operation

With noise levels below 45 dB, these transformers fit seamlessly into residential areas, hospitals, schools, and commercial spaces where quiet operation is essential.

Where This Technology Excels?

Urban Power Distribution Networks

Densely populated areas demand reliable, efficient power distribution. When your transformer runs continuously, every percentage point of efficiency matters. Our amorphous core technology shines in:

• Complex metropolitan grids with fluctuating loads
• Residential neighborhoods requiring low noise
• Compact installations where space is limited

Lower losses mean reduced utility operational costs—savings that can be passed along or reinvested in infrastructure improvements.

Industrial Manufacturing Facilities

Heavy industry can't afford downtime or power quality issues. These transformers maintain stable performance in challenging conditions:

• Steel mills and chemical plants with harsh environments
• Automotive manufacturing requiring precise power quality
• Operations with electromagnetic interference and vibration
• Facilities running three shifts, 365 days per year

Superior load regulation and reduced harmonic distortion (below 3%) protect sensitive equipment while maintaining efficiency under variable loads.

Renewable Energy Integration

Wind farms and solar installations face unique challenges. Variable generation requires transformers that maintain efficiency across wide operating ranges. Our amorphous core design provides:

• Excellent performance with fluctuating renewable sources
• Enhanced grid stability through reduced losses
• Improved power factor performance (exceeding 0.98)
• Durability in outdoor environments

When your project economics depend on maximizing energy capture, reducing transformer losses directly improves ROI.

Real-World Performance

We've provided transformer options for a huge number of important jobs, including

Municipal Infrastructure: The Xuzhou Rail Transit Network Control Centre and the Xuzhou High-speed Railway East Station are powered by our equipment. The dual-circuit systems make sure that they are completely reliable.

Commercial Buildings: Our transformers provide stable power in areas with a lot of foot traffic, like the Xinhuai Central Complex and the Xuzhou Fantawild Adventure.

Industrial Applications: XCMG Group, GCL Photovoltaic Industrial Park, and several factories rely on our power distribution equipment, which is often finished ahead of time and to the highest quality standards.

FAQ

Q1: What's the actual payback period for the higher initial investment?

Typical payback ranges from 3-7 years, depending on your electricity costs and load factors. Most installations achieve ROI within 5 years through 20-30% energy savings. With electricity prices rising, payback periods are often shorter than initially projected.

Q2: How do these transformers perform in extreme temperatures?

Amorphous cores maintain superior efficiency from -40°C to +180°C with minimal degradation. Thermal testing confirms stable operation, with 15-20°C lower operating temperatures compared to silicon steel cores. This extended temperature capability means reliable performance whether you're in arctic conditions or tropical heat.

Q3: Are there reliability concerns with amorphous ribbon cores?

No. Properly manufactured amorphous cores demonstrate equal or superior reliability. Lower operating temperatures actually extend transformer lifespan. Our accelerated aging tests confirm comparable insulation life, while impulse testing verifies core integrity under fault conditions.

Q4: What maintenance is different for amorphous transformers?

Actually, you'll need less maintenance. Lower operating temperatures reduce thermal stress on all components. Standard inspection intervals apply, but you'll typically see slower degradation rates. The dry-type design also eliminates oil testing and related maintenance.

Q5: How do these units handle inrush current and fault conditions?

Amorphous cores provide excellent fault tolerance. Short circuit testing demonstrates mechanical strength comparable to silicon steel, while superior magnetic properties actually improve inrush current limiting and faster recovery from transient conditions. Your protection systems will work seamlessly with these transformers.

Q6: Can I use these transformers anywhere I'd use conventional units?

Yes. Our product serves as a direct replacement for standard dry transformers. Installation requirements are similar, though you'll appreciate the improved efficiency from day one.

Why Choose Xuzhou Tuojie?

With over 20 years of industry experience, we've built our reputation on three principles: technology first, service paramount, and integrity fundamental.

Our manufacturing capabilities include:

• CNC automatic winding machines for precision construction
• Microcomputer-controlled gradient curing furnaces ensuring optimal insulation
• Comprehensive quality inspection laboratory verifying every parameter
• "Zero defects" quality philosophy integrated throughout production

Every transformer undergoes rigorous testing—from raw material inspection through final performance verification. We don't ship anything that doesn't meet our strict standards.

Beyond manufacturing, we provide complete solutions. Need additional electrical products? We assist with procurement, offering convenient one-stop service for your entire project.

Contact Us

Contact our technical team to discuss your specific requirements. We'll help you calculate expected savings and configure the right Energy Saving Amorphous Core Transformer solution for your application.
