10kV-35kV SCB10 Industrial Dry Type Transformer

1.Compact Design: Winding compression reduces thickness by 28%, ideal for mezzanines.
2.Dynamic Insulation: Vacuum-cast resin keeps 30% higher insulation after high humidity.
3.Seamless Compatibility: Matches oil-transformer parameters for uninterrupted retrofit power.
4.Eco & Safe: Oil-free, flame-retardant, self-extinguishing, dustproof, low-maintenance.
5.Customizable & Versatile: Flexible capacity, protection, and wiring for various facilities.

Send Inquiry download

Product Description

Details

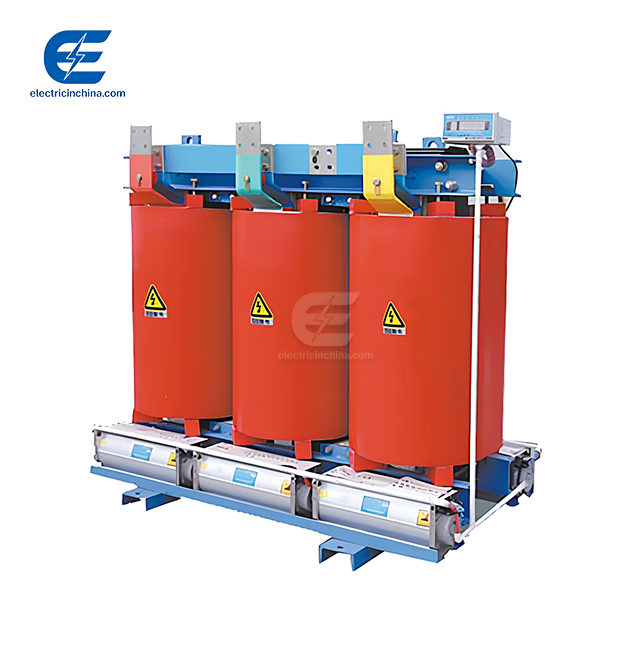

10kV-35kV SCB10 Industrial Dry Type Transformer

Overview

The 10kV-35kV SCB10 Industrial Dry Type Transformer from Xuzhou Tuojie International Trade delivers enterprise-grade reliability you can count on. Our advanced epoxy resin casting technology features winding compression that reduces thickness by 28%, making installation in tight spaces effortless. With dynamic insulation maintaining 30% higher performance after high humidity exposure, your operations stay protected. Our engineering team—backed by 18 patents and over 120 sets of CNC production equipment—ensures each unit meets rigorous ISO9001 standards. Capacity ranges from 30KVA to 31,500KVA, with load losses reduced by 10-15% compared to previous models. This oil-free design eliminates fire hazards while delivering 25+ years of maintenance-free operation.

PATENT CERTIFICATE

What Makes Our SCB10 Series Special?

You're probably wondering what sets this transformer apart from conventional oil-filled units. Let's break it down.

The SCB10 series represents a breakthrough in medium voltage distribution. This three-phase cast resin transformer uses epoxy casting technology instead of traditional oil insulation. That means zero oil leakage risks and zero fire hazards in your facility.

Your facility stays safer because the flame-retardant materials meet IEC 60076-11 standards and self-extinguish during electrical faults. You can install it directly at your load center without expensive fire suppression systems.

The compact design solves a major headache for plant managers. With 28% thickness reduction, you'll fit these units in mezzanines, basements, or any space-constrained location where oil transformers simply won't work.

Technical Specifications

Here's what you're getting with each unit:

Parameter	Specification
Product Model	SCB11, SCB12, SCB13, SCB14, SCB18
Type	Dry-type
Phase	Three Phase
Frequency	50Hz / 60Hz
Cooling Method	AN / AF
Rated Capacity	30KVA – 31,500KVA
Primary Voltage	10 / 20 / 35kV
Secondary Voltage	0.22 – 1.14kV
Vector Group	Dyn11 / Yyn0 / Yd11
Insulation Class	F / H (optional)
Winding Material	Copper / Aluminum
Core Material	Grain-oriented Silicon Steel
Design Standard	IEC60076 / ANSI / IEEE / GB / CSA
Certifications	ISO9001
Altitude	≤4000m
Ambient Temperature	-40°C ~ +40°C
Humidity	≤95%

Key Advantages That Benefit Your Operations

Superior Moisture Resistance

Your transformer keeps running even at 100% humidity. Need to restart after shutdown? No pre-drying required. You're back online immediately.

Enhanced Safety Profile

This 10kV-35kV SCB10 Industrial Dry Type Transformer is non-flammable and pollution-free. You can position it right where you need power most—next to production lines, in control rooms, or near sensitive equipment.

Exceptional Efficiency

Low losses mean lower operating costs for you. Minimal partial discharge and noise levels below 55dB create a better working environment. When you need extra capacity, forced-air cooling lets you operate at 150% rated load.

Zero Maintenance Hassles

No oil changes. No filtration. No contamination worries. Just reliable performance year after year. Installation is straightforward, and your total operating costs stay low throughout the 25-30 year service life.

PARTNERS

Where You'll Use These Transformers?

Manufacturing Facilities

Your automotive plants, steel mills, and chemical processing operations benefit from installation flexibility. Position units near production equipment without complicated fire suppression requirements. The sealed construction handles dust and corrosive atmospheres common in industrial settings.

Mining Operations

Extreme conditions don't stop these transformers. High humidity, temperature swings, and harsh environments are no match for the robust cast resin design. Your conveyor systems and processing equipment get uninterrupted power without environmental contamination risks.

Commercial Buildings

Hospitals, data centers, airports, and high-rise buildings need compact solutions. You'll appreciate the reduced weight and silent operation below 55dB. Installation in occupied spaces becomes simple without oil leakage concerns.

Renewable Energy Projects

Wind farms and solar installations rely on these transformers for grid connection. The maintenance-free operation proves essential when your equipment sits in remote locations with limited service access.

Application areas

Why Choose Xuzhou Tuojie?

We've completed hundreds of key power projects including Xuzhou Rail Transit Network Control Center and XCMG Group factory upgrades. Our technical team includes 15 senior engineers and over 30 intermediate technicians who understand your challenges.

Every transformer undergoes strict quality control from raw material inspection through final testing. Our "zero defects" philosophy means you receive equipment that performs reliably from day one.

We manufacture using advanced CNC automatic winding machines, static vacuum casting equipment, and microcomputer-controlled gradient curing furnaces. This investment in technology translates directly to better products for you.

PRODUCTION EQUIPMENT

FAQ

Q: What's the expected service life and maintenance schedule?

You'll get 25-30 years of service with minimal maintenance. Annual visual inspections, ventilation cleaning, and connection checks are all you need. Unlike oil-filled units, there's no oil analysis or filtration required—saving you time and money.

Q: How does it perform in humid or corrosive environments?

Excellent moisture resistance up to 95% relative humidity keeps your power flowing. The cast resin insulation handles industrial pollutants and salt spray exposure. IP54 protection class ensures reliable operation in challenging conditions.

Q: What about fire safety compared to oil transformers?

The oil-free design eliminates fire risks completely. Self-extinguishing resin materials prevent fire propagation even during electrical faults. You can install these units in buildings without specialized fire suppression systems, reducing both installation costs and safety concerns.

Q: Can these operate at high altitudes or extreme temperatures?

Standard units work up to 2000m altitude without derating. Operating temperature ranges from -25°C to +40°C ambient. Need extreme climate operation? We offer special designs for -40°C to +50°C applications.

Q: What are the installation advantages?

No oil handling complications during transport or installation. No oil containment requirements simplify your foundation design. Compact dimensions and reduced weight compared to oil-filled units enable installation in upper building floors and confined areas.

Q: How does it match with existing infrastructure?

The product features seamless compatibility with oil-transformer parameters. You get uninterrupted retrofit power when upgrading existing systems. Our flexible capacity, protection, and wiring configurations adapt to your specific facility requirements.

Contact Us

Ready to upgrade your 10kV-35kV SCB10 Industrial Dry Type Transformer power distribution system? Contact our team at tuojie@electricinchina.com for tailored solutions that match your exact requirements.

CUSTOMER CASE

SHARE TO

Intentional inquiry

Online Message

Research team
