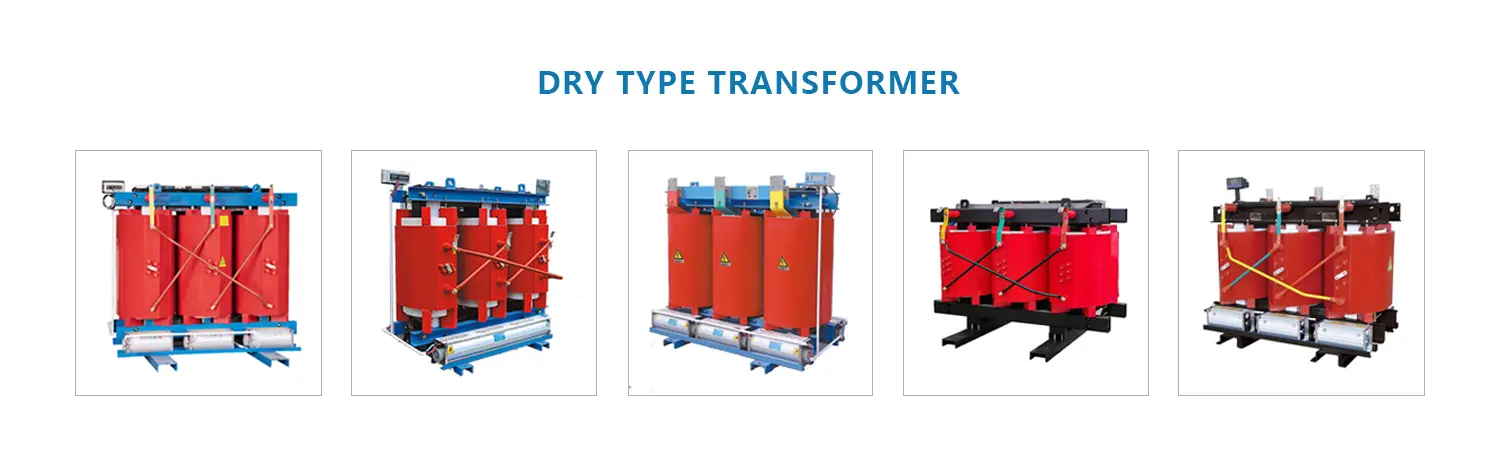

Energy-saving dry-type transformer

Energy-Saving Dry-Type Transformer - Advanced Power Distribution Solution

When you need a dependable power solution, our Energy-saving dry-type transformer delivers exceptional performance. Xuzhou Tuojie International Trade Co., Ltd. has 18 patents and more than 20 years of experience in the business. They make transformers that are at least 98.5% efficient. Through improved core design and cutting edge winding technology, our SCB line (SCB11–SCB18) lowers working energy costs by 20–40%. Each unit goes through a lot of tests because it has a power range of 30KVA to 31500KVA and is managed by strict ISO9001 standards. With more than 120 sets of CNC equipment, such as automatic wrapping machines and vacuum casting systems, our technical team of 15 senior engineers and over 30 intermediate workers makes sure that there are no mistakes in the production process.

Why Choose Our Energy-Efficient Transformer Solution?

Fire-Safe and Environmentally Friendly

Your facility's safety matters. Unlike oil-filled units, our transformers eliminate fire hazards completely. They're non-flammable and pollution-free.

You can install them directly at your load center without worry. This design meets stringent indoor application requirements.

Superior Energy Performance

Reducing your electricity bills is our priority. These transformers feature:

• Low no-load losses (0.15-0.25% of rated capacity)
• Minimal load losses through optimized conductor design
• Grain-oriented silicon steel cores for maximum efficiency
• Power factors of 0.98-0.99

Your facility will see measurable cost savings from day one.

Exceptional Moisture Resistance

Operating in humid conditions? No problem. Our product functions normally at 100% humidity.

After shutdown, you can restart immediately. No pre-drying is needed. This saves you valuable time and maintenance costs.

Robust Construction for Demanding Environments

Your operations can't afford downtime. Our transformers handle:

• Temperature ranges from -40°C to +40°C
• Altitudes up to 4000 meters
• High-vibration industrial environments
• Corrosive atmospheres

The epoxy resin casting provides superior insulation. It's both UV-resistant and non-hygroscopic.

Technical Specifications

Key Features That Benefit Your Operations

Maintenance-Free Design

The people who work on repair already have a lot to do. Our transformers don't need much care.

When maintenance is easy, the costs are lower at the start. Solid shielding gets rid of the need to test and change the oil. You'll save a lot of money on upkeep costs every year.

Enhanced Safety Features

Temperature monitoring protects your investment. Our systems include:

• Automatic temperature display on upper low-voltage coil
• Overheat alarm system
• Automatic trip protection
• Full-range temperature monitoring

You'll have complete visibility into transformer health.

High Overload Capacity

Peak demand periods don't have to stress your system. With forced-air cooling, our units operate safely at 150% rated load.

This flexibility helps during unexpected demand surges. Your operations continue smoothly.

Low Noise Operation

Is your transformer located near workspaces? Our design minimizes disruption.

With noise levels under 45dB, your team won't be disturbed. This makes them ideal for hospitals, offices, and educational facilities.

Proven Performance Across Industries

Municipal Infrastructure Projects

We've powered critical public facilities including:

• Xuzhou Rail Transit Network Control Center (dual-circuit safety design)
• Xuzhou High-speed Railway East Station
• Xuzhou New Health Hospital Phase I

These projects demand absolute reliability. Our transformers deliver.

Commercial Real Estate

Your tenants expect uninterrupted power. We've supplied transformers for:

• Xinhuai Central Complex
• Huaihai Xintiandi shopping centers
• Xuzhou Fantawild Adventure theme park
• Multiple residential complexes

Our Tianyu Yayuan project achieved top quality assessment results.

Industrial Applications

Heavy industry needs robust power solutions. Our track record includes:

• XCMG Group factory upgrades
• GCL Photovoltaic Industrial Park
• Huaihai Biomedical Industrial Park
• Multiple high-tech manufacturing facilities

We completed these projects ahead of schedule while maintaining strict quality standards.

Application Scenarios for Maximum Value

Data Centers and IT Facilities

Your servers can't tolerate power interruptions. Our transformers provide:

• Stable voltage regulation
• Low harmonic distortion (below 3%)
• Silent operation for sensitive equipment
• Compact footprint for space-constrained facilities

Renewable Energy Systems

Solar and wind installations benefit from our specialized designs. The Energy-saving dry-type transformer handles:

• Variable loads from renewable sources
• Voltage step-up from 690V/1000V to transmission levels
• Extreme outdoor conditions
• Enhanced lightning protection

Manufacturing and Processing Plants

Industrial environments demand durability. Our units excel in:

• Automated production lines
• Chemical processing facilities
• Semiconductor fabrication
• High-vibration machinery areas

The corrosion-resistant construction ensures long service life.

Healthcare and Educational Facilities

Safety is non-negotiable in these settings. Benefits include:

• Zero fire risk near occupied spaces
• Ultra-quiet operation for patient comfort
• Reliable power for life-critical systems
• Indoor installation capability

Advanced Manufacturing Process

Cutting-Edge Production Equipment

Our factory operates over 120 advanced machines:

• CNC automatic winding machines for precision coils
• CNC static vacuum casting machines
• Automatic foil winding equipment
• Microcomputer-controlled gradient curing furnaces

This technology ensures consistent quality in every unit.

Rigorous Quality Control

We implement comprehensive monitoring at every stage:

1. Raw material inspection and testing
2. In-process quality checks during production
3. Finished product testing (voltage, insulation, temperature)
4. Pre-delivery inspection
5. Installation supervision

Nothing leaves our facility without meeting strict standards.

Zero-Defect Philosophy

Your investment deserves perfection. We integrate quality into every detail.

Our ISO9001-certified process eliminates defects before they occur. This means fewer callbacks and higher customer satisfaction.

Environmental and Regulatory Compliance

International Standards

Our products meet global requirements:

• IEC60076 international transformer standards
• ANSI/IEEE North American specifications
• GB Chinese national standards
• CSA Canadian certifications

You can deploy these transformers worldwide with confidence.

Environmental Certifications

We hold ISO 14001 environmental management certification. Our manufacturing processes minimize waste and emissions.

All materials are PCB-free and environmentally safe. This supports your corporate sustainability goals.

FAQ

Q: What makes these transformers energy-efficient compared to traditional models?

Our latest SCB series uses grain-oriented silicon steel cores with optimized magnetic circuits. This reduces no-load losses significantly. Advanced conductor design minimizes load losses. Together, these features achieve efficiency ratings above 98.5%, cutting energy costs by 20-40% compared to older transformer models.

Q: Can I install these transformers indoors near occupied spaces?

Absolutely. These units are specifically designed for indoor installation. They contain no flammable oil, eliminating fire risks. The solid insulation system is completely safe. Many hospitals, schools, and office buildings use our transformers in basement locations or mechanical rooms adjacent to workspaces.

Q: How do these transformers perform in high-humidity environments?

Excellent question. Our epoxy resin insulation is non-hygroscopic, meaning it doesn't absorb moisture. The transformers operate normally even at 100% humidity. After shutdown in humid conditions, you can restart immediately without any pre-drying procedure. This makes them ideal for coastal regions and tropical climates.

Q: What maintenance do these transformers require?

Very little. That's one of their biggest advantages. There's no oil to test, filter, or replace. The solid insulation doesn't degrade like liquid dielectrics. We recommend annual visual inspections and cleaning of ventilation areas. Check electrical connections periodically. That's essentially it. Most customers report dramatically lower maintenance costs compared to oil-filled units.

Q: Can these transformers handle overload conditions?

Yes, with built-in protection. Under normal air cooling (AN mode), they operate at rated capacity continuously. When equipped with forced-air cooling (AF mode), they can handle 150% of rated load safely. The automatic temperature monitoring system provides overheat alarms and trip protection. This prevents damage during unexpected demand surges.

Q: What delivery time should I expect for custom specifications?

Standard models (30KVA to 2500KVA) typically ship within 3-4 weeks. Larger units or custom specifications require 6-8 weeks. Our production planning team works to accommodate urgent project needs. We've successfully delivered ahead of schedule for numerous industrial projects. Contact us with your specific requirements for accurate timelines.

Q: Are replacement parts readily available?

Yes. We maintain comprehensive spare parts inventory for all models. Common components like temperature sensors, fans, and terminal connections ship within days. Even specialized parts are available quickly due to our in-house manufacturing capabilities. We also provide detailed maintenance documentation and technical support throughout the transformer's operational life.

Q: How do I select the right capacity for my application?

Capacity selection depends on several factors: your total connected load, demand factor, future expansion plans, and ambient conditions. As a general guideline, size the transformer for 125-150% of your calculated maximum demand. This provides safety margin and allows for growth. Our technical team offers free consultation to help you determine the optimal specification. We'll review your electrical drawings and load calculations to recommend the best solution.

Your Trusted Partner in Power Distribution

Picking the right generator will have long-lasting effects on your business. We know what you're going through because we've been doing this for over 20 years.

Our dedication goes beyond making things. We offer complete options that are made to fit your wants. We can help you whether you're building new sites or improving the ones you already have.

When people ask questions, our computer help team answers them quickly. We help with planning the placement and starting it up. After delivery, we'll still be here to help you.

Contact Us

Ready to reduce energy costs and improve safety with Energy-saving dry-type transformer? Let's discuss your power distribution needs. Email us at tuojie@electricinchina.com to request a customized quote and technical specifications.
