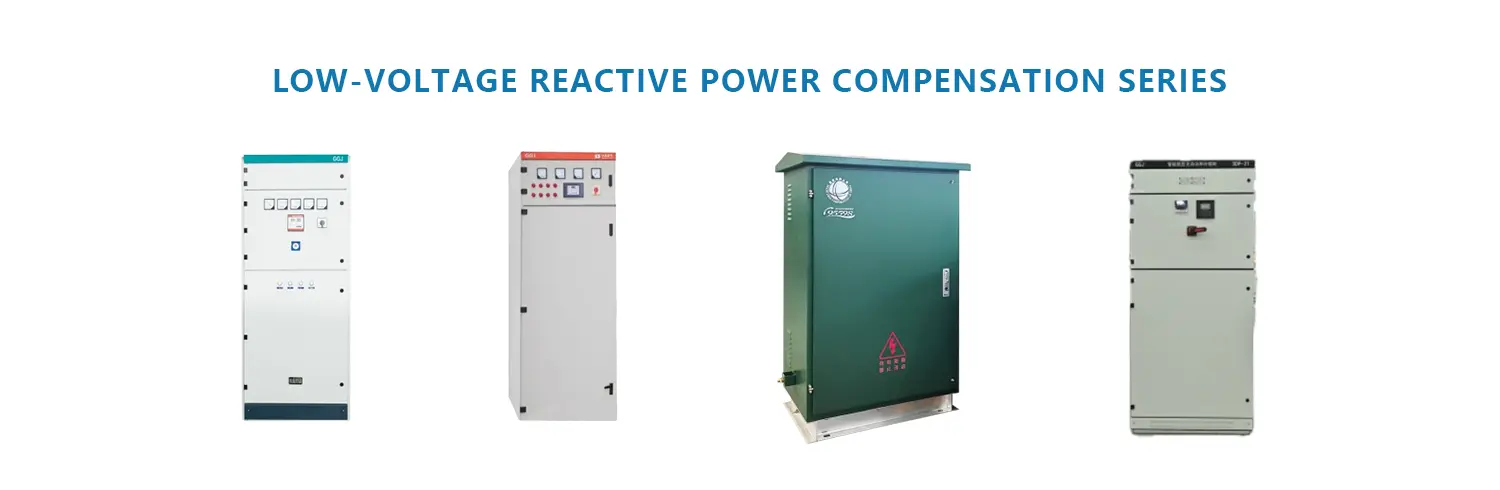

Low Voltage Reactive Power Compensation Device

Low Voltage Reactive Power Compensation Device: Smart Power Factor Solutions

The Low Voltage Reactive Power Compensation Device from Xuzhou Tuojie works very well in 0.4kV distribution systems, making it suitable for large businesses. Our method changes the swapping of capacitors automatically to get the best reactive power. This raises the power factor from the normal range of 0.7 to 0.8 to the range of 0.95-0.99. With zero-crossing switching technology and reaction times of less than 50ms, you can get rid of inrush currents and cut line losses by 8–15%. We offer modular designs with an IP54 grade and full intelligent protections. We have 18 patents, 15 top engineers, and over 120 sets of advanced manufacturing equipment, such as CNC precise machinery. Quality that has been approved by ISO 9001 means that it will work reliably for more than 100,000 swapping cycles.

What Makes Our Reactive Power Compensation System Different?

Your facility meets real problems. Motors and transformers use reactive power, which makes the system less efficient. When your power factor goes below 0.9, your utility company will charge you extra. Unstable voltage makes things not work right. These issues are taken care of automatically by our compensation device.

You get precise phase-by-phase correction that fixes problems with three-phase mismatch that are common in factories. The intelligent controller monitors your load conditions in real-time, adjusting within milliseconds. It's not just tools; it's a full answer for power quality.

Real Results You Can Measure:

• Eliminate 10-30% utility penalty charges
• Reduce transmission losses significantly
• Improve voltage stability across your network
• Extend transformer and cable service life
• Protect sensitive electronics from harmonics

Technical Specifications

Three Core Advantages That Protect Your Investment

1. Zero-Crossing Switching Technology

When capacitors start to work in traditional systems, they make huge inrush currents. At voltage zero-crossing places, our product uses smart switching. You'll get rid of transients that damage equipment and shorten its life. Each phase can make up for its own mismatch, which fixes the problems that come up with three-phase systems.

2. Modular Design for Easy Maintenance

Picture blocks. Each part can work on its own and can even diagnose itself. When repair is needed, you just swap out the part that's broken—no need for complicated troubleshooting. The small size saves important room on the floor. Simplified wiring cuts down on construction time and places where mistakes could happen.

3. Multi-Layer Intelligent Protection

We've engineered comprehensive safeguards into every unit:

• Over-temperature monitoring prevents thermal damage
• Over-voltage and under-voltage protection guards against grid fluctuations
• Phase loss detection stops operation before damage occurs
• Harmonic filtering reduces THD below 5%
• Automatic disconnection during fault conditions

These protections work together, extending service life while reducing maintenance costs.

Industry Applications: Where Your System Excels

Manufacturing Facilities

Steel mills, car companies, and cloth industries all use a lot of reactive power. A power factor of 0.7 is normal for large induction motors and welding tools. Because of how we pay people, that number drops to 0.98, which means that energy costs drop by at least 20%. The machines you use for output run quieter and better.

Commercial Buildings

Power quality needs to be stable in places like shopping malls, office buildings, and hospitals. Reactive loads change throughout the day because of things like HVAC systems, lifts, and fluorescent lights. The smart controller makes adjustments automatically, working with power ranges of 50kVAr to 300kVAr while keeping conditions stable for sensitive equipment.

Data Centers

When important computers are at risk, you can't skimp on power quality. Our device provides accurate harmonic filtering and works with UPS systems and variable frequency drives. IT gear gets clean, stable power that isn't messed with. Uptime gets better. The tools last longer.

Industrial Parks

We've finished work at the GCL Photovoltaic Industrial Park, the Huaihai Biomedical Industrial Park, and companies owned by the XCMG Group. These systems have been shown to work reliably in harsh industrial settings. Our team knows how to deal with complicated delivery networks and a wide range of load patterns.

Quality Management: The Xuzhou Tuojie Difference

Every device passes through rigorous inspection stages. We monitor quality from raw material procurement through production, testing, warehousing, and delivery. No product leaves our facility without complete verification.

Our 17 senior technicians and over 30 intermediate specialists ensure manufacturing excellence. CNC automatic winding machines and microcomputer-controlled gradient curing furnaces maintain precise tolerances. The result? Consistent performance you can depend on.

Certifications That Matter:

• ISO 9001 Quality Management System
• ISO 14001 Environmental Management
• OHSAS 45001 Occupational Health & Safety
• National CCC Mandatory Certification for all low-voltage products

How Reactive Power Compensation Reduces Your Operating Costs?

Reactive power is like the "invisible load" that power companies charge you for. It's needed by motors and transformers to make magnetic fields, but it doesn't do anything useful. You're basically spending money on power that doesn't do anything useful.

You need more electricity from the grid to do the same amount of work when your power factor is low. This makes your wires and transformers lose more power during transfer. The energy company might add extra fees to your bill.

You can get reactive power right where you need it from our Low Voltage Reactive Power Compensation Device. The grid gets less power from your building. Cable heating goes down. The transformer can now hold more. Electricity prices go down a lot every month.

The payback time is usually between 12 and 24 months, but it depends on your load profile and how your energy rates are set up.

FAQ

Q: How quickly does the system respond to changing loads?

A: Our intelligent controller responds within 20-50ms, adjusting capacitor banks automatically as your load changes. This rapid response maintains optimal power factor even during frequent motor starting or variable production conditions.

Q: Can the device handle harmonic distortion from variable frequency drives?

A: Yes. We incorporate detuned reactor design specifically to prevent resonance issues. The harmonic filtering capability reduces Total Harmonic Distortion (THD) below 5%, protecting both the compensation device and your sensitive equipment.

Q: What maintenance does the system require?

A: Minimal maintenance is needed. The self-diagnostic capability alerts you to potential issues before they become problems. Modular design allows quick replacement of individual components without specialized tools. We recommend annual inspections to verify connections and controller settings.

Q: Will this work with my existing electrical infrastructure?

A: Our compensation devices integrate with standard 0.4kV distribution systems. We offer customized solutions suited to diverse environmental conditions and specific requirements. Our technical team can evaluate your facility and recommend the optimal configuration.

Q: How do I determine the right capacity for my facility?

A: Capacity depends on your reactive power demand, which varies by industry and equipment types. A facility audit identifies your specific needs. Generally, manufacturing operations with heavy motor loads require higher capacity (300-800kVAr) while commercial buildings need less (50-300kVAr).

Q: What's the difference between your device and a standard power distribution box?

A: Standard distribution boxes regulate and distribute electrical current with basic circuit protection. Our product actively monitors and corrects power factor, reduces harmonics, and optimizes reactive power flow. It's an intelligent system, not just a distribution point.

Proven Performance: Our Project Track Record

Over 20 years, we've delivered hundreds of successful power projects. Our compensation systems operate reliably in demanding environments:

• Xuzhou Rail Transit Network Control Center: Dual-circuit power supply design with absolute safety requirements
• XCMG Group Factory Upgrades: Completed ahead of schedule while maintaining high quality standards
• Commercial Complexes: Xinhuai Central, Huaihai Xintiandi—managing variable loads across multiple buildings
• GCL Photovoltaic Industrial Park: Specialized solutions for renewable energy integration

These projects demonstrate our capability to handle complex requirements across municipal, commercial, and industrial sectors.

Why Choose Xuzhou Tuojie International Trade?

You need a partner who understands both technology and your business challenges. We combine manufacturing excellence with responsive service:

• Innovation: 18 patents demonstrating continuous improvement
• Expertise: 15 senior engineers and 30+ technical specialists
• Equipment: 120+ advanced machines ensuring precision manufacturing
• Quality: Zero-defect philosophy with ISO 9001 compliance
• Service: Comprehensive solutions including procurement assistance

We don't just sell equipment. We provide tailored solutions that address your specific power quality challenges.

Contact Us

Your facility deserves reliable, efficient power quality. Our Low Voltage Reactive Power Compensation Device delivers measurable results—lower electricity costs, improved equipment life, and stable system operation.

Ready to eliminate power factor penalties and reduce losses? Contact us at tuojie@electricinchina.com for a customized solution evaluation.
