SCB18 High Efficiency Dry-type Transformer

1.Smart Management: Automatic temperature control reduces manual intervention.
2.Custom Capacity: Supports 30–2500 KVA for diverse needs.
3.Armored Protection: Multi-layer resin and ceramic, ISO 9227 C5-M salt resistance.
4.Dynamic Cooling: Air cooling adjusts automatically to temperature and humidity.
5.Electromagnetic Optimization: Innovative magnetic design reduces system losses by 18%.
6.Energy Saving: Low-loss design minimizes energy waste for low-carbon operation.
7.Wide & Customizable: Capacity, protection, and wiring adjustable for various applications.

Send Inquiry download

Product Description

Details

SCB18 High Efficiency Dry-type Transformer - Advanced Power Distribution Solution

When you need reliable, energy-efficient power distribution, the SCB18 High Efficiency Dry-type Transformer from Xuzhou Tuojie International Trade Co., Ltd. delivers exceptional performance. Our transformers achieve efficiency levels exceeding 98.5% at rated load while reducing no-load losses by 30-40% compared to older models. Backed by 18 patents and manufactured using over 120 sets of advanced equipment, our SCB18 series features epoxy resin encapsulated windings with 50% lower partial discharge levels and 30+ years maintenance-free operation. With capacity options from 30KVA to 2500KVA and insulation class H rated to 180°C, you get enterprise-grade reliability meeting IEC 60076 and GB standards.

What Makes the SCB18 High Efficiency Dry-type Transformer Special?

You're looking at the latest generation of cast resin power transformers. This isn't just another electrical component.

The SCB18 transformer solves real problems you face daily. Excessive energy consumption? We've reduced total losses by up to 40%. Fire hazards from oil-filled units? Our solid insulation system eliminates those risks completely. Environmental concerns? Zero oil means zero contamination potential.

Here's what sets our transformer apart:

Smart temperature management reduces your operational burden
Armored protection system featuring multi-layer resin and ceramic construction
Dynamic cooling technology that adapts to your environmental conditions
Electromagnetic optimization cutting system losses by 18%

You can install these transformers directly at your load center. No separate fire-rated room required. No pre-drying procedures after shutdown. Just reliable, continuous operation.

Dry type transformer

Technical Specifications

Our dry-type transformers come with comprehensive specifications tailored to your project requirements:

Parameter	Specification
Product Model	SCB11, SCB12, SCB13, SCB14, SCB18
Type	Dry-type
Phase	Three Phase
Frequency	50Hz / 60Hz
Cooling Method	AN / AF
Rated Capacity	30KVA – 31500KVA
Primary Voltage	10 / 20 / 35kV
Secondary Voltage	0.22 – 1.14kV
Vector Group	Dyn11 / Yyn0 / Yd11
Insulation Class	F / H (optional)
Winding Material	Copper / Aluminum
Core Material	Grain-oriented Silicon Steel
Design Standard	IEC60076 / ANSI / IEEE / GB / CSA
Certifications	ISO9001
Altitude	≤4000m
Ambient Temperature	-40°C ~ +40°C
Humidity	≤95%

Core Advantages That Benefit Your Operations

Exceptional Moisture Resistance

Your transformer operates normally even at 100% humidity. When you need to restart after shutdown, there's no waiting for pre-drying procedures. This means minimal downtime and maximum productivity.

Superior Safety Standards

Non-flammable and fire-resistant construction gives you peace of mind. You can install these units directly at your load center without worrying about fire hazards or environmental pollution. Your facility stays safer.

Outstanding Efficiency Performance

Low losses translate to lower operating costs for you. Minimal partial discharge ensures longevity. Low noise levels keep your environment comfortable. The superior heat dissipation allows operation at 150% rated load under forced-air cooling when you need that extra capacity.

True Maintenance-Free Design

Easy installation means faster commissioning. No routine maintenance requirements reduce your overall operating costs significantly. You spend less time on upkeep and more time on your core business.

CUSTOMER CASE

Why Choose Xuzhou Tuojie International Trade?

SCB18 High Efficiency Dry-type transformer we bring over 20 years of industry experience to every project. Our technical team includes 15 senior engineers, over 30 intermediate technicians, and 17 senior technicians who understand your challenges.

Our manufacturing capabilities include:

CNC automatic winding machines for precision manufacturing
CNC static vacuum casting machines ensuring consistent quality
Automatic foil winding machines for optimal conductor placement
Microcomputer-controlled gradient curing furnaces for superior insulation properties

We follow ISO9001 quality management standards throughout every stage. From raw material procurement to final installation, each step receives rigorous monitoring. The concept of "zero defects" guides our entire production process.

Certificate

Proven Project Experience

We've provided answers in a wide range of fields, including:

Municipal Engineering: Our transformers power important buildings like high-speed train stops and control centres for public transit. Dual-circuit power source designs make sure that your processes are completely safe.

Commercial Real Estate: Our solutions meet the strict needs of businesses while keeping the highest quality standards. This includes shopping malls and leisure centres.

Industrial Applications: We've upgraded the power supplies for large factories, solar industrial parks, and high-tech industrial zones. It is always possible to finish projects early without lowering the standard.

Applications Across Industries

The versatility of our high efficiency dry-type transformers serves multiple sectors:

Data centers requiring ultra-reliable power with minimal downtime risk
Hospitals and medical facilities where safety is non-negotiable
Manufacturing plants needing efficient power distribution to machinery
Commercial buildings seeking energy cost reduction
Renewable energy installations demanding modern transformer technology
Marine and offshore platforms exposed to harsh environmental conditions

Application areas

FAQ

Q: What efficiency improvement can I expect compared to older transformer models?

You'll see 1.5-2.5% higher efficiency than SCB11 models. That translates to 30-40% reduction in total losses. For a 1000kVA unit, annual energy savings typically range from 15,000-50,000 kWh. These aren't theoretical numbers—they're validated through IEEE 529 efficiency testing protocols.

Q: How does the SCB18 handle harmonic distortion from variable frequency drives?

Our advanced winding design handles harmonic distortion up to 15% THD without derating. K-factor ratings of 4-13 accommodate your non-linear loads while maintaining thermal stability. We've verified this through IEEE 519 harmonic analysis testing.

Q: What maintenance requirements are necessary for optimal performance?

You only need annual visual inspection, infrared thermography, and electrical testing every 5 years. No oil analysis. No gasket replacement. This reduces your lifecycle maintenance costs by 60-80% compared to oil-filled units, following IEC 60422 maintenance guidelines.

Q: Can SCB18 transformers operate safely in corrosive environments?

Absolutely. The epoxy resin encapsulation provides superior chemical resistance to acids, alkalis, and industrial solvents. IP54 protection and corrosion-resistant hardware enable safe operation in coastal areas, chemical plants, and wastewater treatment facilities. We've validated this through IEC 60068-2-52 salt spray testing.

Q: What warranty coverage and expected lifespan should I expect?

Our standard warranty covers 2-5 years with extended options to 10 years available. Design life exceeds 30 years based on IEEE C57.100 thermal aging models and accelerated life testing. Failure rates typically remain below 0.1% annually after initial commissioning.

Q: How quickly can you fulfill my order?

Production timeframes depend on your specific requirements and order volume. Our advanced manufacturing equipment and optimized processes enable efficient production. We'll provide you with a detailed timeline during the quotation process.

Quality Control That Protects Your Investment

We use full quality control throughout the whole production process:

As per IEC 60076-1, efficiency testing confirms both no-load and load losses by measuring with great accuracy. You are sure to do well.

IEC 60270-based Partial Discharge Testing finds problems with shielding before it is shipped. The limit for acceptance is less than 10pC at 1.5 times the maximum voltage.

Embedded sensors and thermal imaging are used in Temperature Rise Testing to prove thermal performance under your rated load conditions.

Impulse Voltage Testing according to IEC 60076-3 makes sure that the insulation works well to protect against lightning and switching spikes.

Every unit goes through regular tests that check the turns ratio, measure the inductance, and test the insulation resistance to more than 1000M©.

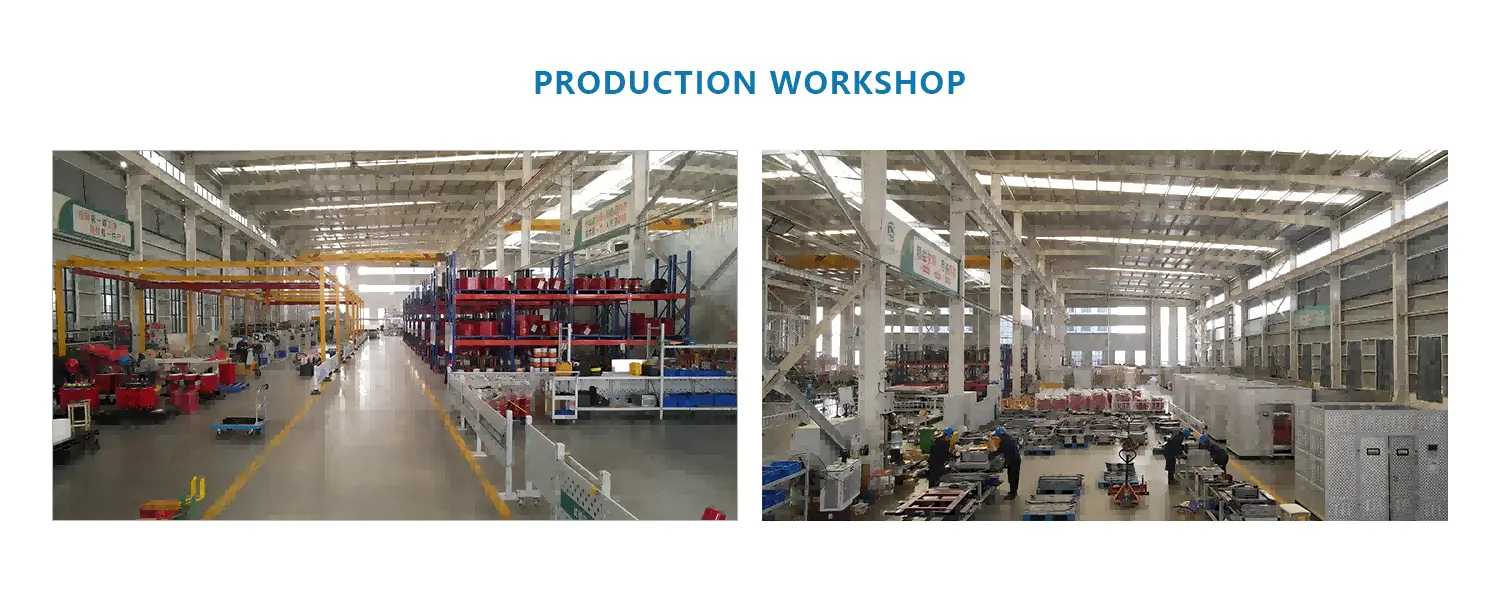

PRODUCTION WORKSHOP

Contact Us

Ready to upgrade your SCB18 High Efficiency Dry-type Transformer power distribution system? Contact our team at tuojie@electricinchina.com for customized solutions that meet your specific requirements.

SHARE TO

Intentional inquiry

Online Message

Research team
