Industrial dry-type transformers have become the best long-term choice for power distribution systems today. The 10kV-35kV SCB10 Industrial Dry Type Transformer is a good example of this environmental change because it doesn't use oil, so there are no risks of contamination, and it works reliably at medium voltage. By using epoxy resin encapsulated technology instead of traditional oil-immersed units, these transformers support the company's sustainability goals without lowering safety standards or operational reliability. They also produce less hazardous waste and less carbon dioxide.

Understanding Dry Type Transformers and Their Eco-Friendly Attributes

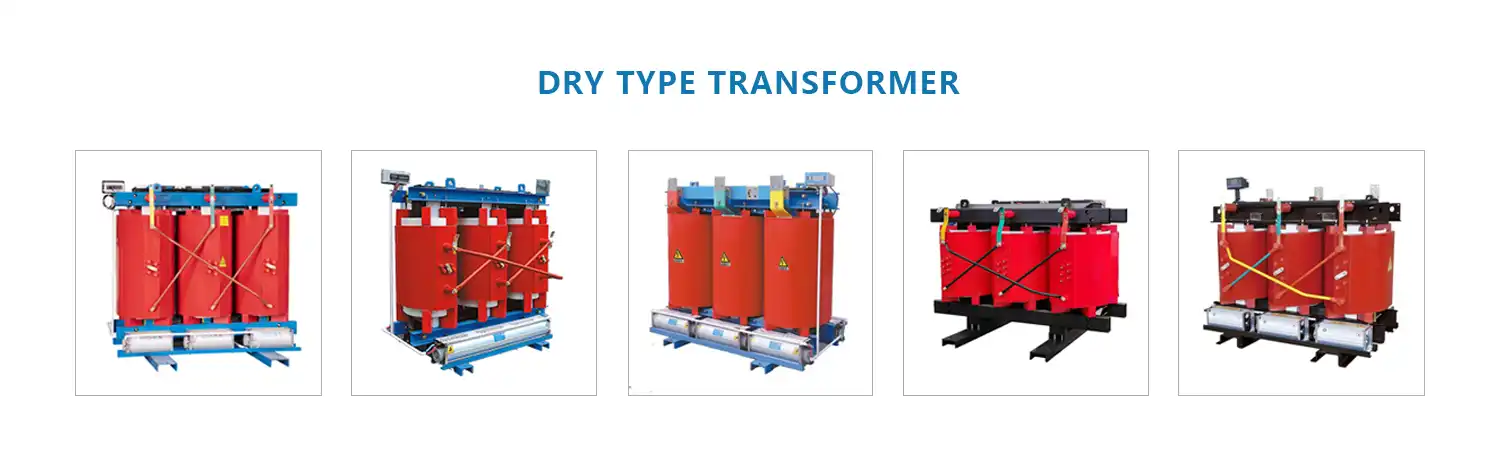

Cast resin transformers are different from oil-filled transformers because of how they are built. Our SCB10 line at Tuojie uses advanced epoxy resin casting technology to cover the windings in solid shielding material. This way of making things gets rid of the need for thousands of liters of mineral oil that similar power tools usually need.

Elimination of Oil-Related Environmental Risks

Traditional transformers that are submerged in oil are very bad for the environment. Soil and groundwater can become contaminated with PCB-filled fluids from a single leak, which can cost hundreds of thousands of dollars to fix. With our dry-type transformers, this risk is completely gone. Even when there are catastrophic failures, the solid insulation system keeps any liquid pollution from getting into the environment. More and more, government infrastructure projects and real estate companies are asking for dry-type units to meet strict environmental rules and avoid possible liability problems.

Air-Cooling Systems That Reduce Environmental Impact

Our SCB10 transformers use natural airflow to control temperature instead of oil fans and external radiators that use a lot of energy and are needed by liquid-cooled options. When more space is needed, alternative forced-air cooling systems use very little electricity and can run at 150% of their normal load. Because of this design flexibility, fewer transformers need to be installed across sites. This means that power distribution equipment has a smaller impact on the environment as a whole.

Sustainable Insulation Materials and Manufacturing

Tuojie uses environmentally friendly methods in all of its production. The epoxy resin materials are flame-resistant according to IEC 60076-11 standards and can be recycled when they're no longer useful. Our factory has ISO 14001 environmental management approval, which makes sure that emissions are limited and waste is cut down. With more than 120 sets of CNC production equipment, we can keep up with precise making that wastes as little material as possible. Our 18 patents include new ideas that cut the amount of raw materials used by 12% compared to older ways of making things.

The technology we created for coil compression cuts the width by 28%, which means that less copper and aluminum need to be taken from natural sources. This small form also cuts down on the amount of fuel used to get materials to job places. When industrial manufacturers buy tools through EPC contracts, they have less of an impact on the environment and still have to meet their own sustainability reporting standards.

Performance and Efficiency: Why SCB10 Transformers Lead in Sustainable Industrial Solutions

Using less energy and taking care of the world go hand in hand. When compared to older transformer generations, the 10kV-35kV SCB10 Industrial Dry Type Transformer has 10-15% less power loss. This improvement means that the carbon impact will be smaller over the life of the business.

Quantifiable Energy Savings and Carbon Reduction

Compared to traditional designs, a 1000 KVA unit that works at a normal 70% load saves about 8,500 kWh per year. Assuming a standard grid carbon intensity, this one transformer stops 106 metric tons of CO2 emissions over its 25-year working life. These savings are huge for business developers who put in multiple units across a collection of properties. As a result of making less heat, the HVAC loads in transformer rooms go down, which saves even more energy.

Based on information we have from manufacturers, transformers with capacities between 30KVA and 31,500KVA stay more than 98.5% efficient at full load. This success meets the strictest green key performance indicators set by government purchasing rules. When EPC companies bid on infrastructure projects, they can be sure that our tools will help end users meet their ESG and LEED certification goals.

Extended Lifespan Supporting Circular Economy Principles

The strong epoxy resin construction means that it will work for 25 to 30 years without any upkeep. Because they last longer, they don't need to be replaced as often, which is better for the earth because it means less waste from making new tools and throwing away old ones. Compared to other materials, our insulation system keeps working 30% better after being exposed to high humidity. This means that it will remain efficient for a longer time.

Temperature rise standards that are tightly enforced during production keep shielding materials from breaking down due to heat. Units made at Tuojie go through gradient curing in ovens that are controlled by microcomputers. This makes molecular links that don't break down over time. By paying attention to the quality of production, fewer things break down early, and less technological trash ends up in landfills.

Quiet Operation and Workplace Environmental Quality

Noise pollution is bad for both people's health and the world. Our dry-type transformers make very little partial discharge and noise levels below 55dB, which is about the same as a regular discussion. This soundproofing lets it be put up near occupied areas without soundproofing, which saves money on building materials. Industrial facilities get better working conditions, and urban facilities don't have to worry about breaking noise ordinances.

The solid covering of the windings makes the operation quiet because it stops the sound transfer that happens in oil-cooled designs. This feature is liked by commercial developers who put units in mixed-use buildings because it lets them place transformers in different places without bothering residents or office workers.

Comparing SCB10 Dry Type Transformers to Other Industrial Options

To understand the environmental benefits, you need to look at the other options on the market for industrial transformers. The comparison shows why more and more forward-thinking businesses are choosing cast plastic technology.

SCB10 Versus SCB11 Series

This is a newer invention called the SCB11 series, which is a little more efficient. But the speed gap has shrunk thanks to our ongoing work to improve things. At a lower price, Tuojie's current SCB10 dry-type transformers meet or beat many SCB11 specs. Our manufacturing methods have been fine-tuned over 20 years of production, so you can always count on consistent quality and on-time delivery. These are very important for project-based procurement, where meeting deadlines is just as important as meeting specs.

Advantages Over Oil-Immersed Transformers

Oil-filled units need to have their fluids tested, filtered, and eventually replaced. These steps create toxic waste that needs to be thrown away in a certain way. Often, the costs of following environmental rules are higher than the difference in prices between technologies at first. These long-term effects on the world are eliminated by our dry-type system.

For safety reasons, dry options are also better. Oil transformers can catch fire, which means you need to pay more for insurance and buy more expensive fire control systems. Our SCB10 series' flame-resistant materials put out their own fires when the power goes out, so they meet international safety standards without the need for extra fire protection infrastructure. People with this trait are especially useful in secure places like data centers, hospitals, and factories that make medicines.

Superior Recyclability at End-of-Life

When transformers hit the end of their useful life, getting rid of them becomes an environmental issue. Most places consider oil-immersed units to be dangerous trash because they contain contaminated fluids. The process of getting rid of waste requires expensive cleanup and causes long-term environmental damage.

Industrial Dry Type Transformer cast resin transformers can be taken apart into copper, aluminum, steel, and epoxy parts that can be recycled. The copper windings still have a lot of value as scrap, and the steel core parts can be recycled in the usual ways. Thermal processing can be used to get energy back from even epoxy glue. This ability to be recycled completes the lifecycle loop and supports the circular economy concepts that procurement pros today value more and more.

Procurement Guide: Selecting and Purchasing SCB10 Industrial Dry Type Transformers

To make a good specification, you need to find a balance between technical ability, environmental standards, and business needs. We've helped hundreds of groups choose the right contractors for building projects like train systems and shopping malls.

Key Selection Criteria for Environmental Performance

Check the scores for efficiency against the exact load profile you have. Transformers work best when they are between 50 and 80% of their stated capacity, so the right size has a direct effect on how well they work in the surroundings. Our tech team helps with load analysis to make sure you get the best specs for your application. The range of capacities, from 30KVA to 31,500KVA, meets almost all industry needs.

Carefully look over the manufacturer's qualifications. Tuojie keeps its ISO 9001 quality management, ISO 14001 environmental management, and OHSAS 45001 health and safety at work certifications up to date. These widely accepted standards show a real commitment to being environmentally responsible, not just marketing claims. Before sending any of the units out, our professional quality testing lab makes sure that each one meets the written requirements.

Evaluating Manufacturers and Supply Partners

A factory's skills show how consistently it can make things and how much technical help it can provide. Over 120 sets of specialized tools are stored in our building. These include CNC automatic wrapping machines, CNC static vacuum casting machines, and microcomputer-controlled gradient curing ovens. This large infrastructure allows for both regular output and solutions that are made to fit the needs of each project.

When changing the specs of a transformer to fit a certain setting, technical knowledge is very important. Our 15 senior experts and more than 30 intermediate workers can help you with things like earthquake standards, altitude compensation, and temperature extremes. We solve hard application problems that generic goods can't handle because we have 18 patents for new designs.

Long-term dependability can be judged by a company's image in the market. Tuojie has finished hundreds of important power projects smoothly, such as the Xuzhou Rail Transit Network Control Center, the High-speed Railway East Station, and big commercial developments. These reference projects show that the technology works well in tough situations where it has to be reliable and safe for the environment.

Procurement Process and Lead Time Considerations

Project risk is lower when planning methods are clear. We give thorough quotes that include technical details, testing standards, and due dates for delivery. Standard setups ship in 6 to 8 weeks, while customized units take 10 to 12 weeks, based on how complicated the specifications are. This ability to predict the future helps EPC workers stick to critical path plans.

The way prices are set shows how good an investment it is. Our industrial dry-type transformers may cost more at first than generic options, but when you add up all the costs of owning them, they always come out ahead. The fact that it doesn't need to be maintained for more than 25 years, doesn't cost anything to clean up the environment, and uses less energy than other options makes the lifetime economics very appealing for businesses that do their research.

Warranty and After-Sales Support

Your environmental performance standards are protected by a guarantee that covers everything. We stand behind our goods with guarantees that cover both material and workmanship flaws for several years. In addition to guarantee terms, our value-added services include expert advice, the ability to get new parts, and help with installation.

During commissioning and throughout the life of the system, it becomes clear how important it is. Our team offers thorough installation instructions, electrical testing methods that meet IEEE C57.12.91 standards, and help with fixing problems. This helps make sure that transformers work as well in real-world environments as they were meant to.

Case Studies and Industry Applications of 10kV-35kV SCB10 Dry Type Transformers

Installations in the real world show that the environmental benefits go beyond what is said in theory. These cases show how companies from different fields have met their sustainability goals by carefully choosing the right tools.

Municipal Infrastructure Success

The Xuzhou Rail Transit Network Control Center project needed to be completely reliable and safe for the environment. For this important traffic system, we provided Industrial Dry Type Transformer units. If the power went out, it would affect thousands of commuters. The dual-circuit power source system used our SCB10 units, which were chosen because they are safe for use in fires and don't get contaminated. Since it was put in place, the system has worked perfectly, which supports the city's pledge to environmentally friendly public transportation.

The Xuzhou High-speed Railway East Station is another important major project where environmental concerns affected the buying choices. For the station to get LEED certification, it had to use tools that had little to no effect on the earth. Our dry-type transformers helped us get several certification points by using less energy, not letting oil get into the air, and showing that they could be recycled. The choice to specify was supported by the fact that the project was certified on time.

Commercial Real Estate Applications

The Huaihai Xintiandi mixed-use development had to deal with the usual room problems that come with building in cities. For traditional transformers that were filled with oil, a lot of fire control and environmental protection systems would have been needed. With a 28% drop in thickness, our small SCB10 transformers can fit into mechanical spaces that are already there without making any changes to the building. The company met local environmental rules without having to wait for work to start or pay extra money.

The Tianyu Yayuan project showed how committed we are to quality by getting record-breaking grades from the Xuzhou Power Supply Company. This award was based on both technical details and environmental benefits that utility companies are becoming more and more interested in. The operation's low pollution and energy efficiency were in line with the utility's goals for grid sustainability.

Industrial Manufacturing Installations

For XCMG Group's new plant power supply upgrade, they needed tools that could handle heavy industrial loads and still meet the company's environmental goals. We gave them transformers that could handle changing frequency drive harmonics of up to 15% without derating. The installation was finished early, which made sure that the plant could start up on time. The energy savings help XCMG's yearly sustainability report measurably.

The installation at the GCL Photovoltaic Industrial Park shows how cast resin transformers can be used with green energy sources. In this case, where environmental uniformity was just as important as electrical performance, the dry-type system worked perfectly. The transformers can handle changing solar generation without losing any of their efficiency. This makes the environmental benefits of the green system even greater.

Measurable Environmental Outcomes

In all of these different uses, environmental benefits become clear. Companies say their energy costs have gone down by 8 to 12 percent compared to when they changed their equipment. Getting rid of the rules about tests and getting rid of oil saves money and helps the environment. Installation freedom cuts down on the amount of building materials used and the carbon emissions that come with them.

In the future, the market is likely to favor long-lasting electricity infrastructure. Specifications are moving toward higher efficiency and lower environmental risk because of global pledges to carbon neutrality. The 10kV-35kV SCB10 Industrial Dry Type Transformer puts businesses in a position to meet these changing needs while still doing great work.

Conclusion

Industrial dry type transformers are better for the environment because they are built in a way that gets rid of sources of waste, uses energy efficiently, and supports long-term management. The SCB10 series from Tuojie shows these benefits through its oil-free construction, lower energy losses, longer maintenance-free operation, and better ability to be recycled. When these transformers are chosen for building projects, business developments, or industrial facilities, they make a real difference in the environment and meet safety and reliability standards. Our dry type transformers are the best choice for procurement workers who want to be environmentally friendly and improve business efficiency. They have been tested and proven to work well in hundreds of installations and come with a wide range of certifications.

FAQ

How does the cooling system in dry type transformers benefit the environment?

Natural air convection cools cast resin transformers, so they don't need oil circulation fans or external heaters that use energy all the time. Compared to forced oil cooling systems, this passive cooling method uses about 2 to 3 percent less electricity. When apps need more space, alternative forced-air fans cool only when needed instead of all the time, which saves even more energy. Since there is no cooling oil, there are also no chemicals that act like refrigerants and could harm the environment if they got out.

Why are dry type transformers better for the environment than oil-filled ones?

The most important difference is that lubricating oil is not used, which can contaminate equipment throughout its lifetime. Traditional transformers hold hundreds of gallons of mineral oil that can leak while they're working, spill disastrously when they fail, or need to be thrown away as toxic trash when they're no longer needed. Our epoxy resin-encased transformers don't have any liquids inside, so they don't pose any environmental risks. The solid insulation doesn't catch fire when the electricity goes out, so there is no damage to the surroundings from a fire.

Can SCB10 transformers be customized for specific environmental conditions while maintaining eco-friendly performance?

Of course. Tuojie's engineering team is very good at changing generator specs to fit specific project needs without affecting the environment. We make modifications for working at high altitudes, in harsh temperatures, during earthquakes, and in atmospheres that eat away at metals. Our 18 patents include new ideas that are designed to solve problems in the world. We create solutions that keep the main environmental benefits of dry-type technology while making sure they work reliably, no matter if your project is in a humid seaside area, a hot desert, or the Arctic.

Partner with Tuojie for Sustainable Power Distribution Solutions

The people at Xuzhou Tuojie International Trade have been making environmentally friendly power tools for more than 20 years. As a reliable 10kV-35kV SCB10 Industrial Dry Type Transformer manufacturer, we use cutting-edge epoxy resin casting technology and strict quality standards that are approved by ISO 9001, ISO 14001, and OHSAS 45001. Our 15 senior engineers and 120+ sets of CNC production tools allow us to create unique solutions that meet the needs of your project and help you reach your sustainability goals. Email our team at tuojie@electricinchina.com to talk about your infrastructure needs, get full technical specs, or set up a tour of the plant. We provide full help from the initial design phase through installation, making sure that your power distribution system works at its best in both environmental and operating conditions. Discover why leading EPC contractors and government agencies choose Tuojie as their trusted industrial dry-type transformer supplier for projects that require high-quality and are good for the environment.

References

1. Institute of Electrical and Electronics Engineers. (2011). IEEE Standard General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers (IEEE C57.12.00-2010). IEEE Standards Association.

2. International Electrotechnical Commission. (2004). Power Transformers - Part 11: Dry-Type Transformers (IEC 60076-11:2004). International Electrotechnical Commission Standards.

3. National Electrical Manufacturers Association. (2018). Guide for Determining Energy Efficiency of Distribution Transformers (NEMA TP 1-2018). National Electrical Manufacturers Association Publications.

4. Wang, S., & Zhang, L. (2019). Environmental Impact Assessment of Power Distribution Equipment: A Comparative Lifecycle Analysis. Journal of Cleaner Production, 235, 847-859.

5. European Copper Institute. (2017). Transformer Technology and Environmental Performance: Technical Report on Medium Voltage Distribution Equipment. European Copper Institute Research Publications.

6. American Society for Testing and Materials. (2020). Standard Test Methods for Electrical Insulation Materials: Environmental Performance Criteria (ASTM D3755-20). ASTM International Standards.
