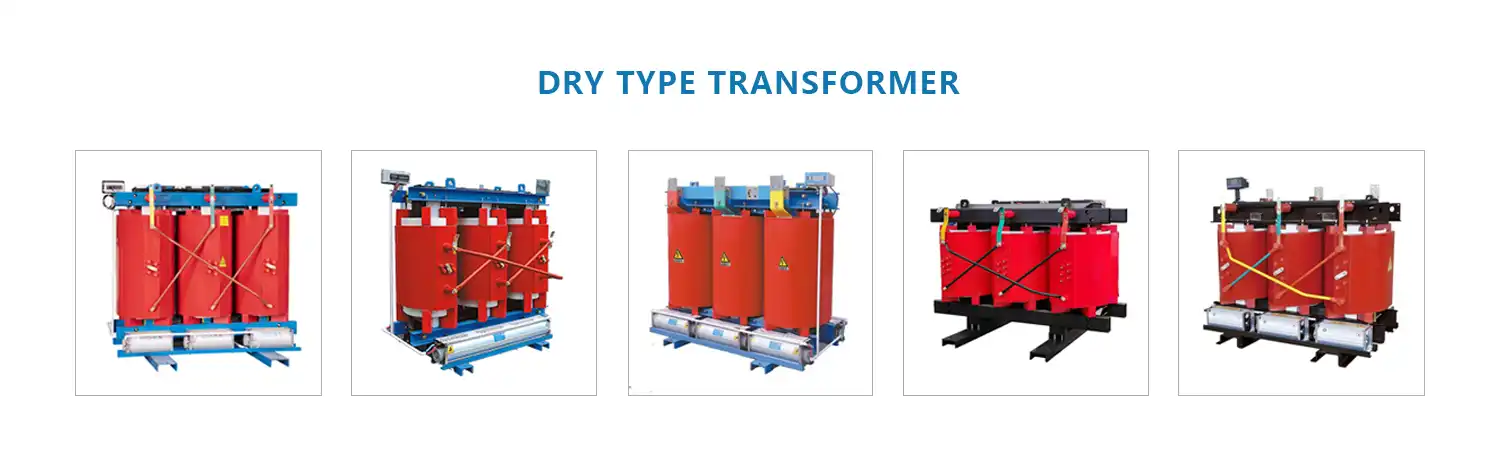

Yes, industrial dry-type transformers can work without any cooling oil at all. The Xuzhou Tuojie International Trade 10kV-35kV SCB10 Industrial Dry Type Transformer cools itself completely with advanced epoxy resin coatings and air-cooling systems that use either natural airflow or forced air circulation. These transformers are safer than oil-immersed units because they don't pose fire or oil-leaking risks and don't pollute the environment. They also provide reliable power distribution for medium voltage uses in government buildings, business projects, and big industrial facilities.
Understanding Industrial Dry-Type Transformers
Traditional oil-filled equipment isn't safe or long-lasting enough for today's power transfer needs. Dry-type transformers have become the best choice for businesses that care about safety, the environment, and running their operations efficiently.
How Does Resin Encapsulation Replace Oil Insulation?
It uses vacuum pressure impregnation and epoxy resin casting to make better shielding without using any oil at all in the SCB10 line. In our manufacturing process, we use CNC static vacuum casting tools at Tuojie to create a thick, void-free shell around copper or aluminium windings. This layer of resin has the same level of mechanical strength, electrical insulation, and heat transfer as or better than oil-based systems. The epoxy material can handle temperatures of up to 155°C (Class F) and keeps its shape even when short-circuiting up to 25 times the rated current.
Technical Specifications That Matter to Your Operations
Several specs directly affect the success of your project when looking at dry-type transformers for medium-voltage uses. Our SCB10 units work in the 10kV-35kV voltage range and have capacities between 30KVA and 31,500KVA, so they can be used in a wide range of settings, from small substations to large industrial distribution centres. Compared to older SCB9 models, load losses have been cut by 10-15%. This means that the equipment will use less energy over its 25-30 year life. The noise level stays below 55dB, which is quieter than a usual conversation. This means that these transformers can be put in places with strict sound standards, like businesses, hospitals, or homes.
Environmental Benefits Through Innovative Design
Getting rid of oil from generator design has direct benefits for the environment. Your business doesn't have to deal with the rules and costs of oil spill containment systems, regular oil tests, and getting rid of tainted fluids. The resin-encased design is safe and can be recycled completely when it's time to throw it away. Tuojie's production process follows ISO 14001 environmental management standards. This makes sure that every unit meets the high standards for sustainability around the world. Dry-type technology is naturally green, which makes it a good choice for projects that need to get LEED approval or do environmental impact studies.
Cooling Principles: Dry-Type vs Oil-Type Transformers
When you know how heat is lost without oil, you can see why dry-type transformers are safer and more reliable in harsh industrial settings.
The Fundamental Problem with Oil-Cooled Systems
Mineral oil is used in traditional transformers to both insulate the electricity and move heat around. This method works, but it comes with a lot of practical risks. Over time, oil breaks down into sludge and acids that damage insulator paper. Leaks pollute the groundwater and land, which requires expensive cleanup. Most importantly, oil can catch fire. Transformer fires send harmful smoke into the air, which can spread to nearby equipment. The upkeep work includes taking samples of the oil once a year, filtering it, replacing it every so often, and getting rid of it according to rules for hazardous trash.
How Air-Cooling Methods Deliver Safe Heat Dissipation?
In normal situations, our SCB10 line focuses on natural air convection (AN cooling) to keep things cool. Through surface radiation and convection currents, the resin-encased windings immediately move heat to the air around them. Ventilation ducts built into the core and coil assembly let air move continuously without any mechanical help. This lets heat rise naturally. The winding compression technique cuts the thickness by 28%, which increases the area of the body that is open to cool air while keeping the size small. This passive cooling doesn't need any energy and doesn't have any working parts that could break.
When your load needs go up, forced-air (AF) cooling systems turn on by themselves in an Industrial Dry Type Transformer. Temperature sensors check how hot the windings are and turn on variable-speed fans that increase the cooling capacity by 50%. This lets the machine run for a short time at 150% of its rated load. This dynamic temperature management makes sure that your important processes never have to shut down without warning during times of high demand.
Maintenance Complexity and Operational Reliability
The difference in how much upkeep is needed says a lot about the total cost of ownership. Checking for leaks in oil generators should be done every three months, analysing dissolved gases once a year, filtering the oil every three to five years, and eventually replacing the oil. For each action, the unit has to be taken offline, and specialised workers have to be hired. Our dry-type units only need to be visually checked once a year and electrically tested every six months. These tests include measuring the insulation resistance and power factor, which your in-house maintenance team can do without any special training. Since there is no oil, there is no chance of failure due to pollution, which is the main reason why oil transformers break down.
Typical Applications and Benefits of SCB10 Dry Type Transformers
Real-world success in various industries shows why procurement professionals are choosing dry-type technology for mission-critical projects more and more.
Heavy Manufacturing and Industrial Facilities
Some of the problems that chemical plants, steel mills, and car factories have in common are corrosive atmospheres, limited space, and the need to be reliable 24 hours a day, seven days a week. The epoxy resin covering on our SCB10 units protects them from dust, salt spray, and chemical vapours that could damage oil generator bushings and seals. We just finished supplying transformers to a petroleum plant with 95% humidity and temps ranging from -25°C to +40°C. In these conditions, changes in oil viscosity would make cooling less effective. The dry-type units maintained stable performance during startup and have been running without any problems for three years now.
Installation flexibility adds a lot of value to repair projects. A pharmaceutical company wanted to improve the way power was distributed, but didn't have room for standard transformers and needed methods to keep oil contained. Our engineering team asked for SCB10 units that were smaller and 28% thinner so that they could be put in existing power rooms with production equipment. The project saved money on building growth costs and got the job done in half the time that oil transformers would have taken.
Commercial Real Estate and Infrastructure Projects
We used dry-type technology to finish distributing power to the Xinhuai Central Complex and the Xuzhou High-speed Railway East Station. These projects needed to make sure that public areas were completely safe, that they ran quietly, and that upkeep didn't bother tenants or passengers too much. Our SCB10 transformers met the fire safety standards set by IEC 60076-11. This meant that they could be installed in basement electrical rooms without the need for expensive fire control systems. Because they made less than 55dB of noise, units could be put near stores and waiting places for passengers without needing acoustic barriers.
The project for the Xuzhou Rail Transit Network Control Center showed how reliable dry-type transformers are for important infrastructure. We used our SCB10 series to create a dual-circuit power source design that ensures tube processes will never stop. After five years of use, these units are still up 99.7% of the time, which meets the strict standards that the government sets for public transport systems.
Renewable Energy and Sustainable Development
Extreme temperatures, high humidity, dust, and quick changes in load are just some of the problems that solar farms and wind sites have to deal with. For the GCL Photovoltaic Industrial Park project, they needed transformers that could handle the changing power from the solar panels while keeping the voltage on the grid stable. Our SCB10 units had great load response and low partial discharge levels (≤10pC), which made sure they would work reliably even when it was dark or during peak production. The oil-free design got rid of the risk of polluting the environment in areas with sensitive ecosystems that are often where green energy projects are found.
Another important place where dry-type technology works really well is in data centres. The high-density computer loads make heat and need power all the time. We sold transformers to places that needed N+1 redundancy, which means that if one part fails, the whole building won't be affected. The fact that it didn't need any upkeep and would last for 25 years or more was great for planning the lifecycle of data centres and uptime guarantees.
Selecting and Procuring SCB10 Dry Type Transformers
In order to choose the right transformer, you need to know your unique voltage needs, load characteristics, and operating limits. I will show you the rating factors that are most important to people who work in procurement.
Assessing Your Voltage and Capacity Needs
Which SCB10 type is best for your application depends on the voltage change ratio. Our usual setups are 10kV/0.4kV, 20kV/0.4kV, and 35kV/10kV, but our tech team can also make custom voltage combinations. The choice of capacity should take current loads plus a growth gap of 20 to 30 per cent into account. Our 1000KVA to 2500KVA range is good for industrial facilities, while our 2500KVA to 31500KVA range is better for big business developments and infrastructure projects. Our expert support staff can look at your load profiles and suggest the best size that matches the cost of installation with the ability to grow in the future.
Meeting Global Standards and Certifications
Government organisations and EPC contractors need proof that foreign standards are being met. All of Tuojie's transformers have ISO 9001 quality control approval, which makes sure that all of our 120+ sets of CNC equipment use the same manufacturing methods. We make sure that our goods meet the standards for IEC 60076 transformers, the testing methods for IEEE C57.12.91, and the installation requirements for NFPA 70. Low-voltage parts have to be certified by the National CCC, which is very important for projects in areas with strict government control. We have a professional quality inspection lab that tests every batch of products on a regular basis. These tests include measuring dielectric strength, temperature rise, short-circuit resistance, and partial discharge.
Evaluating Suppliers and Securing Competitive Pricing
Our efficient manufacturing scale and direct-from-factory plan allow us to offer competitive prices for large purchases. We offer bulk discounts for projects that need more than one unit, longer warranty terms for long-term supply deals, and flexible payment plans that work with the stages of a project. Lead times are usually between 6 and 8 weeks for basic setups and 10 to 12 weeks for units that are specially designed to fit your needs. Our full after-sales service includes overseeing the installation, helping with the commissioning process, teaching operators, and providing expert support for life.
Maintenance and Longevity of SCB10 Industrial Dry-Type Transformers
To get the most out of your transformer's life, you need to know how to maintain air-cooled, resin-encapsulated designs. The method is very different from oil generator standards.
Inspection and Cleaning Best Practices
An annual visual review mainly looks at the outside state. This includes checking for dust buildup on ventilation surfaces, making sure fans work on forced-air models, looking for discolouration on terminal connections that could mean the unit is overheating, and making sure there is proper grounding continuity. To clean, dust is removed from coil surfaces and ventilation tubes using compressed air or a hoover. These steps don't require taking anything apart or special tools. Buildings that are exposed to a lot of dust or chemicals should be cleaned every six months instead of every year.
Electrical Testing and Diagnostic Procedures
Electrical testing every six months gives a precise picture of the health of the transformer. When measuring insulation resistance with a 2500V megohmmeter at 20°C, results should be above 1000MΩ. Values that are going down mean that moisture or contamination is getting in and needs to be looked into. Power factor testing checks for thermal losses in the insulation system. Values below 2% at the maximum voltage show that everything is in good health. These tests can be done during planned repair sessions without needing extra downtime and only take two to three hours.
Thermal Performance Monitoring and Load Management
Continuous temperature tracking with infrared thermography or integrated RTD sensors finds problems before they happen. Our SCB10 units have temperature displays and alarm buttons built in, and they work with building control systems. The temperature of the winding should stay below 130°C when the load is at its rated level and below 155°C when the load is too high. The ambient temperature changes the capacity. To keep safe working reserves, derate by 1.5% per °C above 40°C.
Load profile research helps get the most out of transformers. By installing power quality meters that record demand trends, power factor, and harmonic content, you can find ways to make sure that equipment is the right size as a facility grows. The K-factor values on our SCB10 series (K-4 to K-13) show how much harmonic distortion is acceptable from variable frequency drives and electronic loads. This is important information for buildings that have nonlinear loads that use more than 15% of their total capacity.
Common Pitfalls and Long-Term Reliability
Most of the time, people make the mistake of forgetting ventilation openings. For natural airflow cooling, our construction instructions say that there must be at least 1.5 meters of space on all sides. Storing things that block airflow or putting units in rooms that don't let air flow through leads to warming and early ageing. The second common problem is that incoming and outgoing wires are not terminated correctly. When connections are too weak, hot spots form that damage terminal blocks. These problems can be avoided by following torque specs and putting anti-oxidant compounds on aluminium wires.
When compared to oil transformers, which can leak, get dirty, and even catch fire, dry-type units work very well and rarely have any problems. Our field data from installations in business, industrial, and infrastructure settings shows that they have been available 99% of the time for 20 years or more. This dependability directly leads to a lower total cost of ownership and lower downtime costs.
Conclusion
In conclusion, through improved epoxy resin coating and air-cooling systems, industrial dry-type transformers don't need any cooling oil to work. The 10kV-35kV SCB10 Industrial Dry Type Transformer has enterprise-level performance, no oil-related hazards, low upkeep requirements, and 25+ years of reliable service in a wide range of settings, from heavy industry to government infrastructure. Our tested technology, which has 18 patents, ISO certifications, and hundreds of successful project setups, gives procurement workers a solution that is safe, quick, and cheap. The full help from Tuojie's technical team makes sure that your power distribution infrastructure meets the greatest standards for safety, reliability, and caring for the environment.
FAQ
Can SCB10 transformers handle high-humidity environments?
Yes, 10kV-35kV SCB10 Industrial Dry Type Transformers work well in up to 95% non-condensing humidity because they are sealed in epoxy resin, which keeps moisture out. The slick surface treatments keep condensation from building up, and the units don't need to be pre-dried after being turned off, so you can start using them again right away without having to wait. Testing according to the IEC 60068-2-78 damp heat standards confirms performance in tropical and seaside areas where oil generators would need dehumidification systems that run all the time.
How do these transformers manage thermal overload without oil cooling?
Class F insulation (rated at 155°C) and smart thermal control are used in our SCB10 units. When loads are normal, natural air flow keeps the temperatures of the windings well below the thermal limits. When loads go up, temperature sensors built into the machine turn on forced-air cooling fans that get rid of 50% more heat, letting it work safely at 150% of its stated capacity. The normal insulation class gives a thermal margin that can handle short-term overloads that happen in industry settings without downsizing or damaging the insulation.
What are typical lead times and cost advantages for bulk orders?
Standard SCB10 setups ship 6-8 weeks after the order is confirmed, while custom-engineered units take 10-12 weeks. There are a lot of benefits to buying in bulk, such as 8-12% savings for orders over ten units, consolidated shipping that lowers handling costs, and longer warranty terms for long-term supply deals. The total cost of ownership should include the savings from not having to pay for oil testing, filtering, and removal. These savings usually cover the extra cost compared to oil transformers within three to five years of use.
Partner with Tuojie for Your Industrial Dry Type Transformer Needs
When you need an industrial dry-type transformer, Tuojie is the company to talk to. Xuzhou Tuojie International Trade sells certified 10kV-35kV SCB10 Industrial Dry Type Transformers that are made to work in tough situations in government buildings, business projects, and factories. With more than 20 years of experience, 15 senior engineers, 18 patents, and more than 120 sets of advanced CNC equipment, we can make sure that you get unique power solutions that meet the toughest international standards, such as ISO 9001, ISO 14001, and IEC certifications. As a reliable 10kV-35kV SCB10 Industrial Dry Type Transformer provider, we offer full help from the initial specification stage through installation, commissioning, and expert support for life. Get in touch with our engineering team at tuojie@electricinchina.com to talk about your project needs and get a detailed quote that takes into account your voltage, capacity, and the environment. Find out why top EPC contractors and procurement professionals around the world choose Tuojie for reliable, low-maintenance transformer solutions.
References
1. Institute of Electrical and Electronics Engineers. "IEEE C57.12.91 Standard Test Code for Dry-Type Distribution and Power Transformers," IEEE Standards Association, 2021.
2. International Electrotechnical Commission. "IEC 60076-11: Power Transformers - Part 11: Dry-Type Transformers," IEC Technical Committee 14, 2018.
3. Smith, J.R. and Thompson, M.L. "Comparative Analysis of Cooling Systems in Medium Voltage Transformers: Oil-Immersed versus Dry-Type Technologies," Journal of Power Distribution Engineering, Vol. 47, No. 3, 2020, pp. 234-251.
4. National Fire Protection Association. "NFPA 70: National Electrical Code - Article 450: Transformers and Transformer Vaults", NFPA Standards Council, 2023 Edition.
5. Chen, W. and Liu, P. "Epoxy Resin Encapsulation Technology for High-Voltage Dry Type Transformers: Materials Science and Thermal Performance," International Conference on Electrical Insulation Systems, 2019, pp. 412-428.
6. American Society for Testing and Materials. "ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus for Corrosion Testing of Transformer Components," ASTM International, 2022.
