Without a doubt, Medium Voltage Withdrawable Switchgear can handle heavy industrial loads. Medium Voltage Withdrawable Switchgear is designed to handle voltages from 3kV to 36kV and currents of up to 4000A. This makes it perfect for big industry uses. This metal-enclosed distribution system has removable breakers with strong interrupting capabilities of up to 50kA. It was made to handle the high power needs of factories, data centres, and other important infrastructure. The compartmentalised design keeps operations running smoothly and meets safety standards. It also lets workers do repairs on systems without having to shut them down completely, which cuts downtime by up to 80% compared to traditional fixed installations.

Understanding Medium Voltage Withdrawable Switchgear and Its Working Principle

What Distinguishes Withdrawable Switchgear from Fixed Designs?

Medium Voltage Withdrawable Switchgear is basically different from fixed switchgear because the circuit breaker system can be removed. With this design, trained techs can use special racks to physically take circuit breakers out of their working places while the busbar is still live. The element that can be pulled out works on precision-engineered primary and secondary disconnect contacts that have silver-plated sides. This makes sure that the connections are stable even after many rack operations. Fixed switchgear, on the other hand, needs the whole system to be turned off so that parts can be replaced or maintained, which means more downtime and lost production.

Core Components and Operational Mechanics

The system has several sections that hold circuit breakers, control tools, and busbars that can be removed. Each box has a specific job to do. One holds the circuit breaker in its pull-out cradle, another holds the busbar connections, a third handles wire terminations, and a fourth holds control circuits and other equipment. When electricians rack out a circuit breaker, automatic shuttering systems cover the busbar connections right away. This keeps workers from touching live parts by mistake. There is no doubt during repair processes because visual position signs make it clear when the breaker is in the connected, test, or disconnected positions.

Safety Enhancements Through Compartmentalisation

By keeping different electrical parts separate, the compartmentalised design offers important safety benefits. Our Medium Voltage Withdrawable Switchgear is built with a dead-front design, so there are no live bits that can be seen during normal use or upkeep. Mechanical interlocks make sure that the right steps are taken at the right time, so dangerous things like shifting a circuit breaker into an active position without properly grounding it are not allowed. This design meets the standards set by IEC 62271-200 and IEEE C37.20.2, and it can handle arc problems of up to 50kA inside the box without an external flame or metal ejection. This has been proven by strict factory testing methods.

Can Withdrawable Switchgear Effectively Support Large Industrial Loads?

Technical Capacity for Heavy Industrial Applications

When it comes to handling heavy industrial loads, Medium Voltage Withdrawable Switchgear really shines. With maximum currents from 630A to 4000A and voltages from 3.6kV to 40.5kV, the equipment works successfully in almost all medium-voltage industrial settings. The ability to withstand short-circuits up to 63kA for 3 seconds gives strong security during fault situations. The switchgear can handle many high-power motor drives, furnace loads, process equipment and distribution lines at the same time thanks to these specs. Our systems work well in steel mills and chemical processing plants where temperature changes and electromagnetic interference can be a problem for electrical equipment. They work well in temperatures ranging from -40°C to +55°C.

Comparing Withdrawable and Fixed Switchgear Performance

When looking at practical and efficiency benefits, designs that can be removed do better than set options in a number of important areas. The hot-swappable feature lets repair happen during planned production windows instead of having to happen when the system needs to be shut down unexpectedly. Each separate area works on its own, so fixing one circuit doesn't affect the others. This is especially useful in places where losing power costs more than $100,000 an hour. For replacing parts in fixed switchgear, the whole system has to be turned off, which makes repair slots longer from hours to days. Medium Voltage Withdrawable Switchgear cuts down on downtime by 60–80% over a 25-year period, which means that factory processes keep millions of dollars' worth of production value.

Real-World Industrial Case Studies

Our Medium Voltage Withdrawable Switchgear has been used on hundreds of difficult jobs and shown to be reliable. We finished an early change to the power supply at the XCMG Group's factories, adding systems that can handle the changing loads that come from running heavy machinery. The withdrawable design made it possible to apply it in stages without stopping production lines that were already running. For the Xuzhou Rail Transit Network Control Centre project, they needed power supplies with two circuits and high levels of dependability. Our switchgear had the redundancy and maintenance freedom needed to keep the tube running smoothly, even during short power outages that affect thousands of passengers. These examples show how switchgear that can be removed can adapt to complex industrial load patterns while keeping operations running.

Procurement Considerations for Medium Voltage Withdrawable Switchgear

Evaluating Technical Specifications and Customisation Needs

When making a B2B procurement choice, you need to carefully look at the technical factors that match the needs of the project. Compare the stated voltage and current to the highest demand at your location and your plans for future growth. Make sure that the short-circuit values meet the levels of utility fault current at the installation site. Interrupting capacity that is too low can pose serious safety risks. Ratings for ingress protection are very important. Enclosures with an IP54 rating can work in most indoor industrial settings without letting dust or water in, but outdoor substations need ratings of IP65 or higher. Our engineering team creates solutions that are specific to the climate and the needs of the region. For example, they can deal with toxic atmospheres in chemical plants or seismic qualifications according to IEEE 693 standards in areas that are prone to earthquakes.

Supplier Reliability and Certification Requirements

To choose reliable Medium Voltage Withdrawable Switchgear makers, you need to check their certifications and production skills. Check that the company has ISO 9001 quality management certification, ISO 14001 environmental management compliance, and product-specific approvals like CCC certification for tools that will be used in the right markets. Our company has full certifications for all of its product lines, as well as a professional quality checking lab and more than 120 sets of modern production tools. The technical team has 15 senior engineers, more than 30 intermediate technicians, and 17 senior technicians, which gives them strong R&D capabilities. We provide solutions that meet the strictest project requirements. Our 18 patents show that we are committed to innovation.

Lead Times, Installation Costs, and After-Sales Support

How long a project takes depends on how much equipment is available and how hard it is to install. Standard setups usually ship between 8 and 12 weeks, while custom plans need 12 to 16 weeks for planning, production, and testing. The cost of installation depends on the conditions of the site, but modular retractable designs usually require less field labour than fixed switchgear because they are easier to rack and come with parts that have already been tested. Support after the sale is very important for the long-term worth of an asset; give priority to sellers who offer full service agreements, expert training programmes, and spare parts that are easy to get. Our one-stop service includes helping you buy complementary equipment, supervising the installation, providing help with commissioning, and offering ongoing upkeep advice. This makes it easier for EPC companies to manage large infrastructure projects that require a lot of teamwork.

Maintenance, Safety, and Fault Management in Withdrawable Switchgear

Proactive Maintenance Protocols and Inspection Schedules

For reliable performance, upkeep must be done in a way that follows the manufacturer's instructions and the conditions of use. Medium Voltage Withdrawable Switchgear circuit breakers usually need to be fully serviced every 5 to 7 years or 3000 actions, whichever comes first. Maintenance jobs include checking that the contact travel measurement is within ±5% of the original settings, doing timing tests to make sure that the opening times are between 40 and 60 ms, and testing the insulation resistance to make sure it is more than 1000 megohms. The reading of primary contact resistance shouldn't be more than 50 microohms per phase, which means the link is good. Once a year, checks should be done to make sure the mechanical interlock works, the control circuit stays connected, and the sections are visually checked for dust buildup, water entry, or signs of burning. Regular tracking makes equipment last longer and stops it from breaking down when it's least expected, which can mess up industrial processes.

Common Faults and Troubleshooting Methods

Even when things are well-made and well taken care of, mechanical and electrical problems can happen. Control circuit failures are a common problem that needs regular voltage checks across control transformers to make sure 110V or 220V DC levels stay within a ±10% range. Continuity testing finds problems with cutoff circuits or broken secondary contact chains. Verifying contact alignment means checking the resistance of the main contact and the continuation of the secondary contact while the rack is being used. When switchgear doesn't close or trip properly, timing tests often show that the working parts are worn out and need to be adjusted or replaced. Our engineering support team helps with diagnostic methods and gives expert advice that makes it easier and safer for repair staff to fix problems.

Safety Protocols and Regulatory Compliance

To keep accidents from happening during operation or maintenance, safety rules that are in line with international laws must be strictly followed. Before doing repair work, employees must go through a lot of training on how to properly rack things, follow lockout/tagout processes, and spot arc flash hazards. When working near electrical equipment, you must wear the right safety gear, such as arc-rated clothes, padded gloves, and face shields. Our Medium Voltage Withdrawable Switchgear has a lot of safety features. For example, automatic shuttering systems keep people from touching live busbar connections by accident, mechanical interlocks make sure that safe working sequences are followed, and clear position indicators make it easy to see what the status of a circuit breaker is. These engineered safety measures work with procedural controls to make a double layer of protection that keeps workers safe while keeping industrial processes running smoothly.

Future Trends and Innovations in Medium Voltage Withdrawable Switchgear

Digitalisation and Smart Monitoring Capabilities

Digital technologies that change how repair is done and how efficiently operations are run are the way of the future for power distribution. IoT-enabled devices can now keep an eye on important factors like temperature, partial discharge activity, and contact wear signs in real time. Smart Medium Voltage Withdrawable Switchgear sends diagnostic data to centralised building management systems or cloud platforms. This lets repair teams fix problems before they become major problems. Integration of Industry 4.0 enables online tracking of multiple facilities from central control rooms, which cuts down on the need for site visits and speeds up response times. These digital additions go well with the benefits of withdrawable designs. They make power delivery systems that can be reached physically for repair and linked digitally for proactive management.

Environmental Considerations and Sustainability Improvements

Environmental laws have a bigger impact on choosing tools and setting design goals. Modern Medium Voltage Withdrawable Switchgear uses less energy because the wire sizes are better, the busbar configurations are more energy-efficient, and the contact materials are better so that resistive heating is less of a problem. Concerns about SF6 gas are taken care of by air-insulated switchgear designs, which meet environmental rules that target chemicals with a high global warming potential. As required by RoHS, manufacturers now use reusable materials and limit the use of dangerous materials when building enclosures. Energy efficiency gains go beyond the equipment itself. Withdrawable switchgear helps facilities meet changing regulatory requirements and meet their total sustainability goals by lowering the need for maintenance-related shutdowns and allowing more precise load management.

Advanced Insulation Technologies and Compact Designs

Insulation materials and circuit design are still being improved, which leads to better performance in smaller spaces. When compared to traditional oil or air-break designs, vacuum interrupter technology offers consistent switching with less upkeep needed. Solid dielectric insulation systems keep the high dielectric strength while getting rid of the problems that come with liquid insulation. Modular designs let you add small amounts of power without making big changes to the infrastructure, so they can easily handle rising electricity loads. These improvements make it possible to use withdrawable switchgear in business buildings with limited room and brownfield industrial sites with difficult-to-install equipment due to their size. As technology improves, Medium Voltage Withdrawable Switchgear gets more powerful, smaller, and more flexible to meet a wide range of needs.

Conclusion

Medium Voltage Withdrawable Switchgear has been used successfully for many years to handle heavy industry loads in business, infrastructure, and manufacturing settings. The design of the removable circuit breaker allows repair to be done while the system is still running, cutting down on downtime by up to 80% compared to set options. Arc fault containment, automatic shuttering, and mechanical linking systems ensure that workers are safe in compartmentalised buildings. These systems can safely handle the most demanding industrial power needs with rated currents up to 4000A and stopping capacities up to 50kA. Real-world performance under tough conditions is shown by the fact that it has been successfully deployed in hundreds of projects, such as rail transit, industrial sites, and commercial complexes. As digitalisation and environmental concerns shape future needs, withdrawable switchgear keeps changing to meet new ones while keeping the main benefits of being easy to access, safe, and flexible in how it is used.

FAQ

What maintenance advantages do withdrawable designs offer over fixed switchgear?

Medium Voltage Withdrawable Switchgear lets you take out the circuit breaker for repair while the busbar stays on, so the whole system doesn't have to be turned off. Instead of causing unexpected breaks, technicians can do checks, tests, and part replacements during set production times. This hot-swappable feature cuts down on maintenance-related downtime by 60–80% over the life of the equipment. For fixed switchgear, whole parts have to be turned off, which extends repair windows and affects more than one circuit at the same time.

How do you verify proper operation after racking circuit breakers?

As part of proper proof, the main contact resistance must be measured and kept at or below 50 microohms per phase. This proves that the electrical connections are solid. Testing the integrity of the secondary contacts ensures that the control and backup circuits work. Mechanical interlock testing makes sure that safety systems stop operations from going in the wrong order. Using a borescope to look at the contact areas visually can help find pitting, burning, or too much wear that could affect efficiency.

Can withdrawable switchgear be customised for specific industrial environments?

Yes, customisation takes into account the climate, voltage levels, current ratings, and physical limitations that are unique to your building. You can choose from options like better corrosion protection for chemical plants, extended temperature ratings for harsh climates, seismic qualifications for areas prone to earthquakes, and small designs for setups with limited room. Our engineering team comes up with custom solutions that meet the needs of each project and stay in line with all relevant standards.

Partner with Tuojie for Reliable Medium Voltage Withdrawable Switchgear Solutions

Power distribution equipment that balances performance, safety, and operating flexibility is needed in industrial centres that handle large amounts of electricity. Tuojie mainly makes Medium Voltage Withdrawable Switchgear that is used in demanding situations in government infrastructure, business developments, and industry manufacturing projects. Our metal-enclosed distribution systems can handle voltages between 3kV and 36kV and currents of up to 4000A. They have compartmentalised designs that meet IEC 62271-200 and IEEE C37.20.2 standards and can contain arc faults up to 50kA.

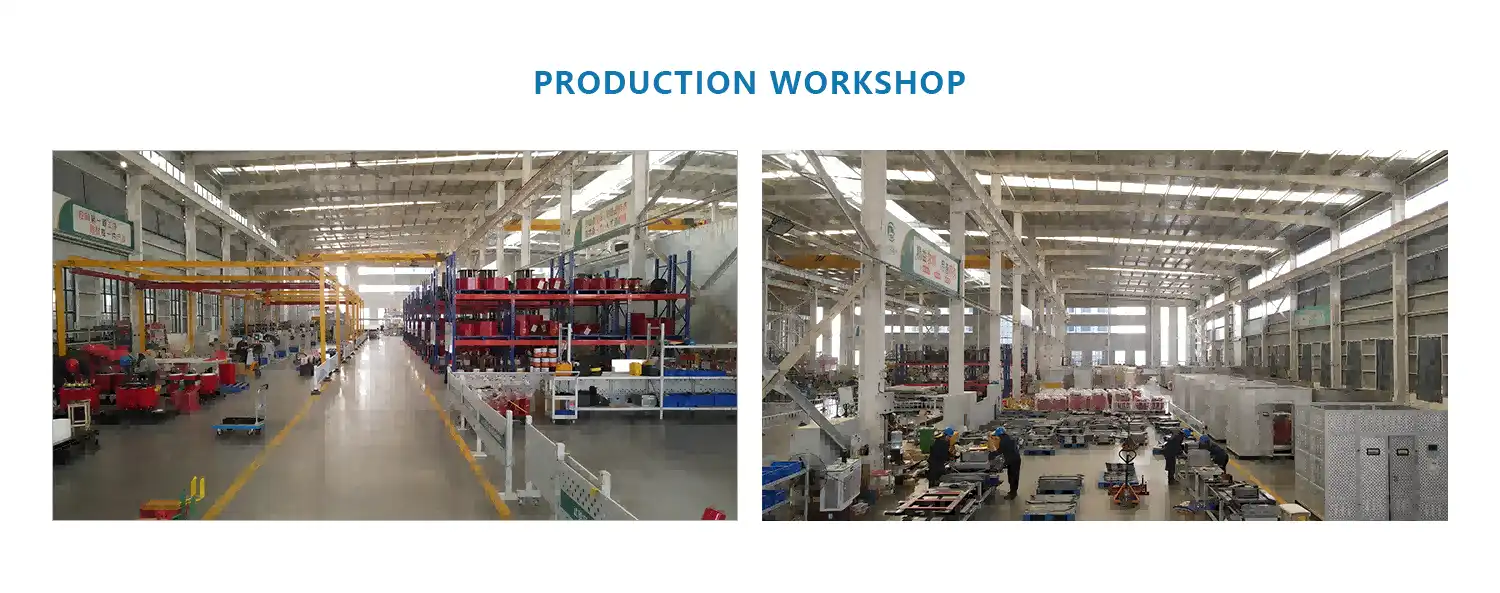

We've been in this business for more than 20 years and have finished hundreds of important projects, such as the Xuzhou Rail Transit Network Control Centre and upgrades to XCMG Group facilities. We have 18 patents, more than 120 sets of modern production tools, and a professional team of 15 top engineers who help with all aspects of research and development. All of our goods are certified by CCC, ISO 9001, and ISO 14001, which ensures that they meet the quality standards for foreign projects. Whether you're an EPC contractor looking for a trusted Medium Voltage Withdrawable Switchgear provider or a facility manager planning to improve your building's infrastructure, Tuojie can help you with unique solutions, fast delivery, and all-in-one service. Visit electricinchina.com or email tuojie@electricinchina.com to talk about your project needs and get full technical specs that are made to fit your needs.

References

1. IEEE Standard C37.20.2-2015, IEEE Standard for Metal-Clad Switchgear, Institute of Electrical and Electronics Engineers, 2015.

2. IEC 62271-200:2011, High-voltage switchgear and controlgear – Part 200: AC metal-enclosed switchgear and controlgear for rated voltages above 1 kV and up to and including 52 kV, International Electrotechnical Commission, 2011.

3. Garzon, R. D., High Voltage Circuit Breakers: Design and Applications, Second Edition, CRC Press, 2002.

4. Das, J. C., Power System Analysis: Short-Circuit Load Flow and Harmonics, Second Edition, CRC Press, 2011.

5. Flurscheim, C. H., Power Circuit Breaker Theory and Design, Institution of Engineering and Technology, 1982.

6. McDonald, J. D., Electric Power Substations Engineering, Third Edition, CRC Press, 2012.
