Picking a dependable substation option is very important for the success of big developments, government projects, or industrial sites that need to connect to the power grid. The YBM Series Prefabricated Substation solves the problems that EPC contractors, real estate developers, and infrastructure project managers face by providing high-quality factory-assembly, quick deployment, and full technical support. This small solution combines high-voltage switchgear, transformers, and low-voltage distribution equipment into a single waterproof box. Compared to traditional substations, this solution cuts installation time by 60% and takes up 30% less space. Our YBM Series Prefabricated Substations not only help with construction right away, but they also provide real long-term value through higher safety scores, proven durability in harsh settings, and compliance with international quality standards that meet tender requirements.

Key Design Features and Technical Specifications of YBM Series Prefabricated Substation

Power distribution equipment is based on a lot of complicated technology. Knowing this helps buying teams make smart choices. Our engineering team has come up with detailed specifications that take into account both performance needs and how things work in the real world.

Integrated Component Architecture

The tech behind the YBM Series Prefabricated Substation involves making sure that many different systems work together smoothly. Our factory-built units include low-voltage distribution equipment that works at 0.4kV and high-voltage switchgear that can handle voltages from 6kV to 35kV. The transformers' rated power ranges from 315kVA to 2500kVA. This integration takes place inside a galvanised steel case with a polyester powder finish that protects against external entry (IP54) and mechanical impact (IK10). Each compartment works on its own while still being able to connect to the others without any problems. For added safety during repair work, the high-voltage section, transformer zone, and low-voltage distribution area all have their own entry points. The modular design lets the system's capacity grow in the future without having to be replaced completely. This solves the problem of scalability that often comes up in industrial parks and commercial developments that are growing.

Environmental Resilience and Durability Standards

It's rare for project places to be perfect. Changes in weather and humidity, dust buildup, and mechanical stress all pose problems for traditional electrical infrastructure. We've built durability into every choice of material and step of the building process for the YBM Series Prefabricated Substation. Thermal cycling tests show that the device works reliably in temperatures ranging from -40°C to +50°C, so it can be used all year round in a variety of regions. Testing for salt spray according to ASTM B117 guidelines shows that the coastal environment is suitable. This is especially helpful for port facilities, offshore platforms, and marine industrial zones. The heart of the transformer is made of high-quality cold-rolled grain-oriented silicon steel and insulating oil made from plants. This improves thermal management and has less of an effect on the environment. These parts keep working the same way at levels up to 2000 meters, so they can be used on projects in hilly areas or at high-altitude industrial sites. With a 30-year operating life expectancy and a full guarantee, this product is reliable for as long as building projects need it to be.

Smart Grid Compatibility and Monitoring Systems

Power networks today need to be able to be monitored intelligently. Arrays of built-in sensors constantly monitor the flow of current, the amount of voltage, the pattern of power use, and changes in the temperature of the transformer within the YBM Series Prefabricated substation. The tracking system has four important distant functions: telemetry for collecting data in real time, signalling for status reports, control for switching operations from a distance, and adjustment for making the best use of parameters. Automatic fault detection methods quickly find areas that aren't working right, separating them and moving loads to keep the power on. This automated response usually gets things back to normal within one minute, without any help from a person. With SCADA integration, distributed substation networks can be managed from one place, which cuts down on operational costs and speeds up response times. For big business parks or industrial buildings with many power outlets, this connection turns separate pieces of equipment into a coordinated system for managing energy.

Advantages of YBM Series Compared to Traditional and Competitor Solutions

Clear comparisons of performance are needed to make procurement decisions. Knowing how YBM Series Prefabricated Substation solutions are different from traditional building methods helps you decide how to spend your money and how long to take to complete a project.

Installation Speed and Project Timeline Impact

Traditionally, building a substation takes longer than planned because work has to be done one step at a time on-site. Preparing the foundation, putting together the structure, installing equipment, wiring, testing, and finishing usually take several months. In places with hard winters or monsoon seasons, weather delays make extensions even less reliable. Our factory-assembled YBM Series Prefabricated Substation method gets rid of these factors by using controlled manufacturing settings. We use more than 120 sets of high-tech equipment, such as CNC automatic winding machines, CNC static vacuum casting machines, automatic foil winding machines, and microcomputer-controlled gradient curing furnaces, to make sure that the assembly goes smoothly. When it gets to the job site, each unit is already connected; all that needs to be done is to mount it on the foundation, connect the cables, and test it one last time. Installation takes days instead of months, which speeds up the whole job and lowers the cost of carrying it. This speed advantage comes in handy for projects that need to be finished quickly, like when power outages affect how much money is made or when operations have to be completed.

Space Efficiency in Urban and Constrained Environments

More and more, urban development projects have to make the most of the space they have. Getting building permits for electrical equipment can take a long time, especially if the work will take up a lot of space. Both of these issues are solved by the small size of our YBM Series Prefabricated Substation units, which are 30% smaller than the area needed by regular substations. This efficient use of the room makes it possible for projects that bring in money and makes the permit process easier. Reclaiming space and putting it to use in production areas instead of utility infrastructure is good for industrial facilities. Developers of commercial real estate can plan their sites more freely by moving the electrical distribution closer to the load centers without giving up valuable building space. The modular compartmentalisation lets you arrange parts vertically when there isn't enough room for them to be laid out horizontally. This makes it possible to work with sites that don't have regular shapes, which makes standard plans hard to use.

Quality Assurance Through Factory Manufacturing

When building on-site, quality issues come up that make even experienced builders think outside the box. Weather exposure during assembly, different levels of skill on installation teams, and different storage conditions for materials all create places where things could go wrong. These differences are taken care of by climate-controlled factories and standardised methods during the assembly of the YBM Series Prefabricated Substation. Before being put together, each part goes through a set of inspection procedures to make sure it meets the requirements. Impulse voltage withstand testing according to IEC 60060-1 standards checks the stability of the insulation under 95kV lightning impulse conditions and 38kV power frequency testing for one minute. Validating the performance of a transformer involves measuring its no-load loss and making sure it stays within ±10% of its assured values, checking its load loss at its rated current, and making sure the winding temperature rises below 65K for ONAN cooling. When paired with ISO 9001, ISO 14001, and OHSAS 45001 certifications, these thorough quality control measures give the written assurance needed for bids and governmental approvals.

Installation, Maintenance, and Operation Guidance for YBM Series Substations

Technical specs show what can be done, but how well the YBM Series Prefabricated substation works in real life is what matters. Our approach focuses on streamlining processes to keep things running smoothly for a long time with as little trouble as possible.

Simplified Deployment Process

The first step in getting a site ready for construction is designing a foundation that works with the dirt and meets seismic standards for the YBM Series Prefabricated Substation. Our technical team gives you detailed foundation specifications, such as where the anchor points are and how the load needs to be distributed. When the unit is delivered, it is put in place using special lifting equipment and mounting points built into the base structure. This keeps stress from building up during handling. Low-voltage and high-voltage connections can be made through the bottom sealing plates, which keep the waterproof structure. When connecting to a grounding grid, make sure that the resistance is less than 4 ohms. This can be done by grounding the main terminals, the neutral points of the transformer, and the bases of lightning arrestors separately. Before turning it on, pre-operational testing makes sure it works properly by looking for things like internal cleanliness, the flexibility of the working mechanism, the reliability of the electrical parts, the accuracy of the auxiliary contacts, the precision of the meter and relay, the instrument transformer ratios, and the wire polarity. This methodical approach, along with thorough paperwork and expert advice, makes sure that commissioning goes smoothly, no matter how experienced the installation team is.

Maintenance Requirements and Lifecycle Support

The life of equipment relies on how well it is maintained. Routine check methods for the YBM Series Prefabricated Substation focus on parts that can be reached without taking the whole thing apart. Visual checks find signs of environmental entry, signs of mechanical wear, and signs of link integrity. Thermal imaging scans find hot spots before they break, and partial discharge testing makes sure that the insulation condition stays below 50 picocoulombs at the rated voltage. Busbar joint resistance tests show that values stay below 50 microohms, which stops too many losses and possible failure spots. When problems happen, our global technical support network can do remote diagnostics and often answer operational questions without having to visit the site. When it's time to replace a part, the modular design lets you isolate a section while keeping power going to circuits that aren't affected. Project owners can be sure that the equipment will work well for a long time because it comes with a guarantee that covers everything and is backed up by recorded quality standards. Value-added services go beyond just supplying the equipment and include help with managing it throughout its life.

Procurement Process and Buying Considerations for YBM Series Prefabricated Substations

To get through the buying process, you need to know what options are out there and pick YBM Series Prefabricated Substation combinations that meet the needs of your project.

Capacity Selection and Configuration Options

Different uses have very different power distribution needs. In government infrastructure projects, strong room for future growth is often needed, while in private developments, space efficiency and blending in with the surrounding area's look are more important. Industrial manufacturers need YBM Series Prefabricated Substation configurations that can handle the unique load characteristics and reliability needs of their processes. We sell transformers with power ratings between 315kVA and 2500kVA. The primary side has voltage ratings between 6kV and 35kV, and the secondary side has the standard 400V rating. When choosing capacity, project teams should think about expected high demand, load growth, the need for redundancy, and how well the new system will fit in with the current electrical infrastructure. Temperature ranges, altitude, humidity levels, and exposure to corrosive atmospheres are some of the environmental factors that affect material specifications and protection ratings. Our engineering team helps with configuration choices by giving expert advice based on the needs of the project and guiding you through the certification requirements that are unique to each region's legal framework.

Lead Times and Delivery Coordination

Project plans rely on having access to reliable tools. Standard YBM Series Prefabricated Substation designs usually ship within set production cycles, but unique specs need more time for planning and production. Coordinated delivery plans that line up with building goals make bulk procurement for multi-phase developments more efficient. This cuts down on storage needs and equipment exposure before installation. When planning transportation arrangements, it's important to think about things like size limits, weight distribution, and how to get to installation places. Our well-established supply chain networks make shipping to project sites across the United States quick and easy, and tracking systems let you see where your packages are in the delivery process. Payment models can be changed to fit different project financing plans, and they are flexible enough to support both direct purchase and contractor-managed acquisition. Authorised dealer channels provide local points of contact for technical advice, warranty service, and finding new parts. This makes sure that help continues throughout the entire working span.

Environmental and Long-Term Business Benefits of Choosing the YBM Series

Beyond the immediate technical performance, choices about sustainable infrastructure like the YBM Series Prefabricated Substation take into account how they will affect the environment and how much they will cost over their whole life.

Energy Efficiency and Carbon Footprint Reduction

Both ongoing costs and environmental performance are directly affected by how efficiently operations are run. High-quality transformer cores in the YBM Series Prefabricated Substation keep no-load losses below 0.8% of rated capacity, which is the lowest level possible. This efficiency means that less energy will be used over many years, which will lower both carbon pollution and power costs. Thermal control is better with vegetable-based insulating oil than with traditional mineral oils, and it is also better for the earth. The combined design cuts down on energy loss caused by wire runs between different pieces of equipment, which makes the system work better as a whole. These traits are in line with sustainability reporting requirements that are becoming more common in government contracts and corporate development projects. They help reach environmental certification goals while delivering real operational savings.

Total Cost of Ownership Advantages

The initial purchase price is only one part of investing in infrastructure. For a full financial analysis of the YBM Series Prefabricated Substation, you need to look at things like installation costs, running costs, upkeep needs, downtime risks, and how to get rid of old equipment. The shorter time it takes to install these units cuts down on labour costs, site overhead, and the cost of borrowing money during construction. Because of factory quality control and sealed enclosure security, less upkeep is needed, which lowers ongoing running costs. Better reliability cuts down on expensive downtime and the money that is lost because of it. This is especially important for industrial buildings where power outages stop production. The working life span of 30 years is longer than many other options, which spreads out the cost of capital over longer periods of time and reduces the number of times it needs to be replaced. Looking at these factors as a whole, they show strong total cost of ownership benefits that make an informed choice worthwhile, even if the original price is higher than for lower-quality options.

Scalability and Future Adaptability

Investing in infrastructure must be able to adapt to changing needs. Over the lifecycle of a facility, the power distribution needs change as the business grows, processes are changed, and technology is upgraded. Our YBM Series Prefabricated Substations are designed in a way that makes it easy to add low-voltage sections and increase their capacity without having to replace whole systems. Compartmentalised design lets you selectively upgrade—replacing individual parts as technology improves while keeping the equipment working. This ability to adapt protects investments in capital by making systems last longer through small improvements instead of having to be replaced completely. Supporting technological upgrades makes sure that old systems will work with new smart grid technologies, improved tracking systems, and the integration of green energy as they become standard.

Conclusion

When choosing electrical infrastructure for big projects, you need to think carefully about the technical capabilities, supplier dependability, and long-term value. The YBM Series Prefabricated Substation meets important needs for industrial, commercial, and government uses by providing quality that is guaranteed at the factory, quick deployment, and full support. With more than 20 years of experience providing power solutions and certifications in ISO 9001, ISO 14001, and OHSAS 45001, we have the dedication to quality that large-scale projects need. We have done well on hundreds of important power projects and can make solutions using more than 120 different types of specialised equipment. These solutions meet strict bidding requirements and help with the smooth running of projects and their long-term dependability.

FAQ

1. What certifications does the YBM Series Prefabricated Substation carry?

Our departments keep their ISO 9001 quality management, ISO 14001 environmental management, and OHSAS 45001 health and safety at work certifications up to date for the YBM Series Prefabricated Substation. All of the parts of the low-voltage switchgear have National CCC Mandatory Certification, which means they meet Chinese standards. Electrical testing methods follow IEC 60060-1 guidelines for making sure the insulation is solid. There are thorough factory acceptance tests with third-party witness procedures and full documentation packages needed for foreign project submissions.

2. Can these substations integrate with renewable energy systems?

The YBM Series Prefabricated Substation design allows for the use of green energy by having voltage ratings that are compatible, a safety system that works well with other systems, and tracking tools that help with spread generation. Smart grid features let you control the flow of power from solar panels, wind farms, and energy storage systems. Connecting SCADA systems lets you see all of your mixed-generation sources from one place, which makes it easier to get the most out of both traditional and renewable power sources.

3. What warranty coverage and technical support are available?

The YBM Series Prefabricated Substation guarantee covers both problems with the way the part was made and how well it works. Specific rules are talked about during the buying process and depend on the part's setup and use. Throughout the working lifespan, our global technical support network offers remote tests, help with troubleshooting, and maintenance advice. In addition to providing tools, value-added services include overseeing installation, helping with commissioning, and ongoing advice to make sure the best performance over the 30-year working life expectancy.

Partner with a Trusted YBM Series Prefabricated Substation Supplier

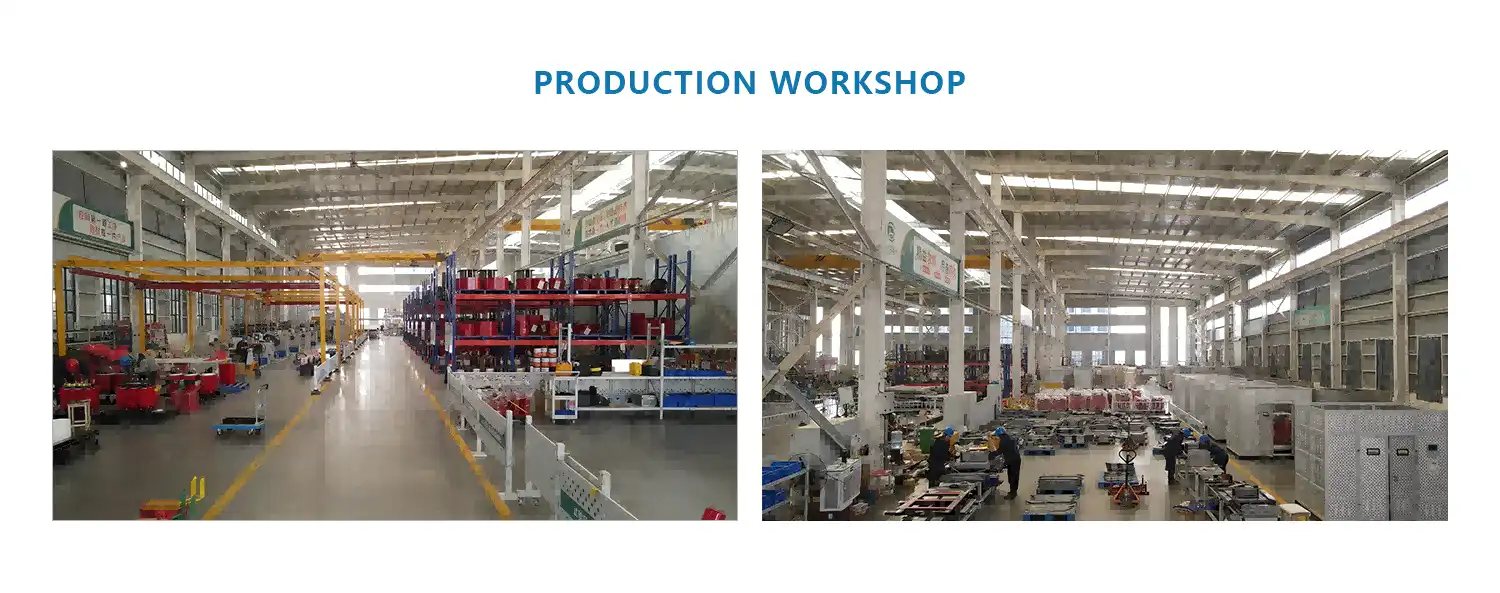

Tuojie can help you with your most difficult projects because he has more than twenty years of experience in power transformers, low-voltage switchgear, and electrical infrastructure solutions. Our high-tech factories have more than 120 pieces of precise machinery, such as CNC automatic winding machines and microcomputer-controlled gradient curing ovens. They make YBM Series Prefabricated Substation units that meet the strict needs of commercial, industrial, and government developments. We've completed hundreds of important power projects for XCMG Group, such as the Xuzhou Rail Transit Network Control Center, the Xuzhou High-speed Railway East Station, and major industrial sites. This shows that we can work well in difficult EPC settings. With 15 senior engineers, over 30 intermediate technicians, and 17 senior technicians on staff, we have a lot of technical knowledge that lets us make solutions that are perfect for your surroundings and meet your performance needs. Get in touch with tuojie@electricinchina.com right away to talk about the details of your project with our engineering team. We offer in-depth technical consultations, quotes that are tailored to your exact needs, and full support from the procurement stage through commissioning and beyond. Check out our full line of products at electricinchina.com to see why top companies choose Tuojie as their chosen manufacturer for important electrical infrastructure.
